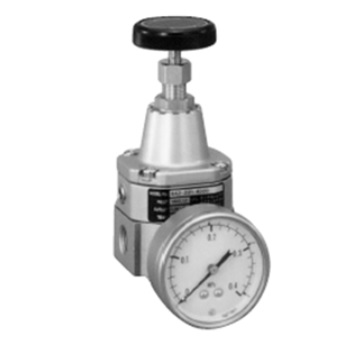

Bộ điều áp AZBIL NRV-502JD, R42

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ điều áp AZBIL NRV-502JD, R42

Thông tin sản phẩm

Bộ điều áp AZBIL NRV-502JD, R42


NRV-502JD SERIES

NRV-502JD SERIES

SPECIFICATIONS


R42 SERIES

R42 SERIES

SPECIFICATIONS

FLUID Filtered Compressed Air
(Use oil removal filter in supply line)
MAXIMUM INLET PRESSURE 1.0MPa
AMBIENT TEMPERATURE 0 ~ 70℃
ADJUSTING PRESSURE RANGE •0.04 ~ 0.4MPa
•0.08 ~ 0.8MPa
•0.02 ~ 0.2MPa
OPERATION Integral feed-back controlled constant bleed type
(Constant bleed flow: max. 1.7dm³/min. (ANR)
at inlet pressure: 0.17MPa
outlet pressure: 0
RELIEF Relieving type
MASS(kg) 0.35

MODEL NUMBER NRV-502JD
PIPE SIZE Rc1/4 (IN, OUT Port)
Rc1/4 Pilot Air Port
FLUID Filtered Clean Air (w/5μm element)
MAXIMUM INLET PRESSURE 1.0MPa
AMBIENT TEMPERATURE 5 ~ 60°C
FEED BACK PORT Rc 1/8
MASS (kg) 0.95
