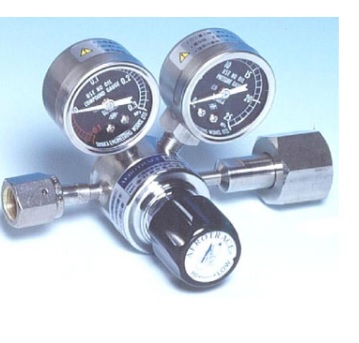

Bộ điều áp khí hàn hãng NISSAN TANAKA ATR-203

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ điều áp khí hàn hãng NISSAN TANAKA ATR-203

Thông tin sản phẩm

Bộ điều áp khí hàn hãng NISSAN TANAKA ATR-203


Specification
Products line-up
Model P1 gauge P2 gauge Inlet connection Out let connection
ATR-203RF 25MPa 0.3MPa W22-14RH Female 1/8”  swagelok
ATR-203RR W22-14RH Female 1/4”UJR Female
ATR-203LF W22-14LH Female 1/8” swagelok
ATR-203LR W22-14LH Female 1/4”UJR Female
ATR-103LF Only for He 1/8” swagelok
ATR-103LR Only for He 1/4”UJR Female
ATR-803F CGA-180 1/8” swagelok
ATR-803R CGA-180 1/4”UJR Female
ATR-003RW 1/4”UJR Female 1/4”UJR Female
ATR-215RF 1.5MPa W22-14RH Female 1/8” swagelok
ATR-215RR W22-14RH Female 1/4”UJR Female
ATR-215LF W22-14LH Female 1/8” swagelok
ATR-215LR W22-14LH Female 1/4”UJR Female
ATR-115LF Only for He 1/8” swagelok
ATR-115LR Only for He 1/4”UJR Female
ATR-815F CGA-180 1/8” swagelok
ATR-815R CGA-180 1/4”UJR Female
ATR-015RW 1/4”UJR Female 1/4”UJR Female

Pressure gauge P1 25MPa
P2 0.3MPa 1.5MPa
Maximum using pressure P1 15MPa
P2 0.2MPa 1.0MPa
Material Body SUS316L
Diapragm SUS316L
Other gas chamger SUS316L、Fluorocarbon polymer
Using temperature range -5~40℃
Flowrate (N2) P1
P2 10L/min(nor) 15L/min(nor)
Weight About 700g
