Bộ điều áp khí tinh khiết hãng NISSAN TANAKA

Thông tin sản phẩm

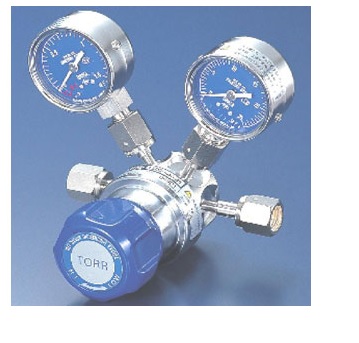

Bộ điều áp khí tinh khiết hãng NISSAN TANAKA

TORR Regulator

Models applying high-corrosion-resistance alloy, Ni-Cr-Mo alloy (Hastelloy) to primary metallic parts contacting with gas are available for use in corrosive gases.

S-TORR Regulator

This is a model for super high-purity gas piping use, securing gas purity retaining performance and safety to the utmost limit. Models for special uses are available, such as models for strong corrosive gas, negative pressure control, and tied diaphragm type.

For inlet low-pressure gases

BA	TORR‐30 series 1/4", 3/8" Point of Use Pressure Regulator	Maximum inlet pressure	5.0MPa
		Outlet pressure range	1.0MPa with -0.1~1.5Mpa gauge
			0.7MPa with -0.1~1.0Mpa gauge
			0.4MPa with -0.1~0.6Mpa gauge
			0.2MPa with -0.1~0.3Mpa gauge
		Flow rates	300~450L/min(nor)
	TORR‐50 series 1/2" Point of Use Pressure Regulator	Maximum inlet pressure	3.5MPa
		Outlet pressure range	1.0MPa with -0.1~1.5Mpa gauge
			0.6MPa with -0.1~1.0Mpa gauge
			0.4MPa with -0.1~0.6Mpa gauge
			0.2MPa with -0.1~0.3Mpa gauge
		Flow rates	400~800L/min(nor)
	TORR‐50 series 3/4" Point of Use and Hi-Flow Pressure Regulator	Maximum inlet pressure	2.0MPa
		Outlet pressure range	0.6MPa with -0.1~1.0Mpa gauge
			0.4MPa with -0.1~0.6Mpa gauge
			0.2MPa with -0.1~0.3Mpa gauge
		Flow rates	600~1200L/min(nor)
	TORR‐150 series 3/4", 1 Point of Use and Hi-Flow Pressure Regulator	Maximum inlet pressure	2.0MPa
		Outlet pressure range	0.6MPa with -0.1~1.0Mpa gauge
			0.4MPa with -0.1~0.6Mpa gauge
			0.2MPa with -0.1~0.3Mpa gauge
		Flow rates	1000～2400L/min(nor)
	TORR‐350 series Point of Use and Ultra Hi-Flow Pressure Regulator	Maximum inlet pressure	1.5MPa
		Outlet pressure range	0.6MPa with -0.1~1.0Mpa gauge
			0.4MPa with -0.1~0.6Mpa gauge
			0.2MPa with -0.1~0.3Mpa gauge
		Flow rates	120～180m3/ｈ(nor)
	TORR‐800 series Point of Use and Ultra Hi-Flow Pressure Regulator	Maximum inlet pressure	1.0MPa
		Outlet pressure range	0.6MPa
		Flow rates	280～650m3/ｈ(nor)
ＥＰ	S-TORRⅡ-02iF series IGS Pressure Regulator	Maximum inlet pressure	1.0MPa
		Outlet pressure range	0.4MPa specification
		Flow rates	40L/min（nor）
	S-TORRⅢ-30 series 1/2" Point of Use Pressure Regulator	Maximum inlet pressure	1.5MPa
		Outlet pressure range	－0.1～1.0MPa計付 0.6MPa
			－0.1～0.6MPa計付 0.4MPa
			－0.1～0.3MPa計付 0.2MPa
		Flow rates	50～90L/min（nor）
	S-TORRⅢ-50 series 3/8," 1/2" Point of Use Pressure Regulator	Maximum inlet pressure	1.5MPa
		Outlet pressure range	0.6MPa with -0.1~1.0Mpa gauge
			0.4MPa with -0.1~0.6Mpa gauge
			0.2MPa with -0.1~0.3Mpa gauge
		Flow rates		300~400L/min(nor)
