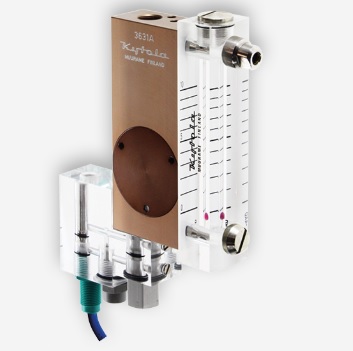

Bộ điều chỉnh lưu lượng hãng Kytola Model 3631
The Kytola® Constant Flow Regulator Model 3631 is designed to provide a constant flow of liquids in applications where supply or back pressure varies. It also provides a constant flow of gases in applications where back pressure varies.
Model 3631 is a membrane type differential pressure controller with alarm function. It is supplied with variable area flow meter model L for indicating and setting the flow rate.
| Technical Data |
| Max. flow |
1.5 L/min H2O (60 NL/min air at 6 barg) |
| Max. diff. pressure |
10 bar |
| Max. static pressure |
20 bar |
| Minimum required pressure drop |
2 bar |
| Max. temperature |
75°C (*80°C) |
| Body |
Aluminium or AISI 316 |
| Spring |
AISI 316 |
| Membrane |
EPDM |
| Plate |
Nylon (PA 6) (*PVDF) |
| Seals |
Nitrile (*Viton, EPDM) |
| Mesh |
PTFE |
| Connections |
G 1/4" or NPT 1/4" |
| Weight |
0.6 kg (Aluminium body) or 1.2 kg (AISI 316 body) |
| *) Special construction on request |
