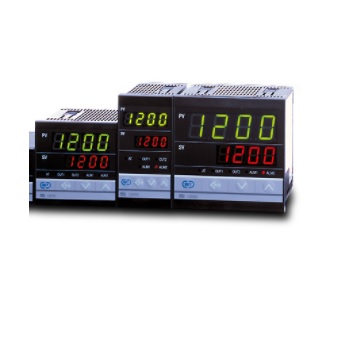

Bộ điều khiển nhiệt độ RKC CB100, CB400, CB500, CB700, CB900

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ điều khiển nhiệt độ RKC CB100, CB400, CB500, CB700, CB900

Thông tin sản phẩm

Bộ điều khiển nhiệt độ RKC CB100, CB400, CB500, CB700, CB900


  • Number of Inputs :1 point
  • Input type : ※See the Input Range Code for the input range.

1)Thermocouple : K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII

2)RTD: Pt100 or JPt100

3)DC voltage: 0 to 5V dc, 1 to 5V dc

4)DC current: 0 to 20mA dc, 4 to 20mA dc ※ A 250Ω external resistor is required.

  • Sampling time: 0.5 sec.
  • Measurement accuracy:±(0.3% of displayed value+1 digit) ※Depends on the input and the range.
  • Outputs (OUT1)

1) Relay contact output : 1a contact

2) Voltage pulse output for SSR driving: 0/12V dc

3) DC Current output : 0 to 20mA, 4 to 20mA dc

4) Triac trigger output: Trigger method – Zero cross method



  • Output 2 (OUT2)  ※Cooling output for heat/cool control

1) Relay contact output : 1a contact

2) Voltage pulse output for SSR driving: 0/12V dc

3) DC Current output : 4 to 20mA dc

  • Alarm outputs (max.2 points): Temperature alarm, Heater break alarm, and Control loop break alarm
  • CT input for Heater break alarm (max. 1 point)
  • Communication function: Communication interface RS-485



  • Power supply voltage (Rating): 100 to 240Vac/24Vac/24Vdc
  • Ambient temperature: 0 to 50°C
  • Weight:

CB100 Approx. 170g

CB400 Approx. 250g

CB500 Approx. 250g

CB700 Approx. 290g

CB900 Approx. 340g
