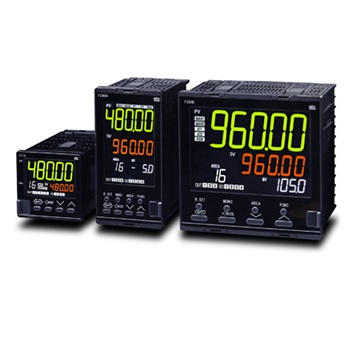

Bộ điều khiển nhiệt độ RKC FZ110, FZ400, FZ900

Mã sản phẩm: |

Thương hiệu:

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thông tin sản phẩm

Number of Inputs : Max.2 points ※1 point for FZ100
Input type (Universal input) : ※See the Input Range Code for the input range.
1）Thermocouple : K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII
2）RTD: Pt100 and JPt100 (3-wire system)
3）DC voltage/current: 0 to 10mV, 0 to 100mV, 0 to 20mA, 4 to 20mA
4）DC voltage: 0 to 1V, 0 to 5V, 1 to 5V, 0 to 10V, -5 to +5V,-10 to +10V
Sampling time: 0.05 sec.
※0.1 second when the controller is used for Dual loop control or Control loop combination function.
Measurement accuracy : ±(0.1% of displayed value+1 digit) ※Depends on the input and the range.
Output 1 (OUT1) ※Control, Event, HBA (Heater Break Alarm), LBA (Control loop break alarm) or analog retransmission are assigned.
1）Relay contact output (a):FZ100: 1a contact
2）Relay contact output (b):FZ400 / FZ900: 1c contact ※Highly durable relay
3）Voltage pulse output for SSR driving: 0/12V dc
4）Current output : 0 to 20mA, 4 to 20mA dc
5）Continuous voltage output: 0 to 5V, 1 to 5V, 0 to 10V dc
6）Transistor output: Allowable load current: 100 mA

Output 2 (OUT2) ※Control, Event, HBA (Heater Break Alarm), LBA (Control loop break alarm) or analog retransmission can be assigned
1) Relay contact output (a): FZ100 1a contact
2) Relay contact output (b): FZ400 / FZ900: 1a contact ※Highly durable relay
3) Voltage pulse output for SSR driving: 0/12V dc
4) Current output: 0 to 20mA, 4 to 20mA dc
5) Continuous voltage output: 0 to 5V, 1 to 5V, 0 to 10V dc
6) Transistor output: Allowable load current 100 mA
Output 3 (OUT3) ※Universal output
※Control, Event, HBA (Heater Break Alarm), LBA (Control loop break alarm) or analog retransmission can be assigned
1) Voltage pulse output for SSR driving: 0/14 dc
2) Current output: 0 to 20mA, 4 to 20mA dc
Digital output (DO: max.4 points) ※2 points for FZ100
Relay contact output: 1a contact
Event function (max.4 points) ※Max. 2 points for FZ100
