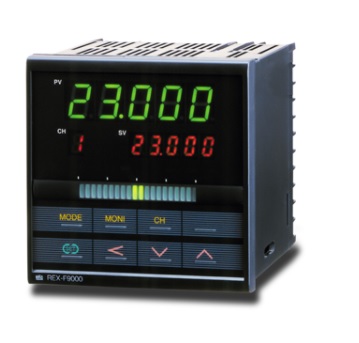

Bộ điều khiển nhiệt độ RKC REX-F9000

Bộ điều khiển nhiệt độ RKC REX-F9000

Bộ điều khiển nhiệt độ RKC REX-F9000

• Number of Inputs :2 points
• Input type: RTD Pt100, JPt100 (Class A recommended), 3-wire and 4-wire systems. Allowable input leadwire resistance: 0.04°C/Ω or less ※within10Ω per lead
• Input range: 0.000 to 50.000°C
• Sampling time: 0.1 sec.
• Measurement accuracy：±0.05°C (at ambient temperature 23±5°C)
• Control output
  1) Voltage pulse output for SSR driving: 0/12V dc
  2) Current output : 4 to 20mA dc (Output resolution: 13 bits or more)
• External contact input: RUN/STOP switching ※common to all channels
• Communication: RS-485

Specification of Options

• Analog output: 0 to 5V, 1 to 5V, 0 to 20mA, 4 to 20mA
  ※Output resolution: 13 bits or more

<General Specification>

• Power supply voltage (Rating): 100 to 240Vac/24ac/24Vdc
• Ambient temperature: 0 to 50°C
• Weight: Approx.530g
• Safety standards:UL UL61010-1
