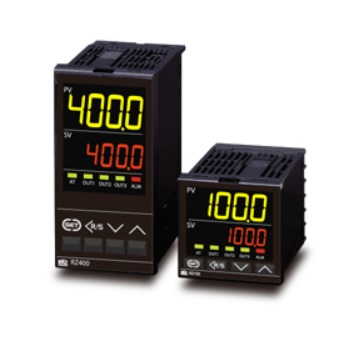

Bộ điều khiển nhiệt độ RKC RZ100, RZ400
- Number of Inputs :1 point
- Input type : ※See the Input Range Code for the input range.
Group 1: Thermocouple K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII
Group 2: RTD Pt100, JPt100
- Sampling time : 0.25 sec.
- Measurement accuracy: ±(0.2% of displayed value+1 digit) ※Depends on the input and the range.
- Outputs (OUT: Max.3 points) ※Control, Temperature alarm, HBA (Heater Break Alarm), or LBA (Control loop break alarm) can be assigned.
1）Relay contact output (A) : OUT2 of RZ400 1a contact ※Highly durable relays are used
2）Relay contact output (B) : OUT2/3 of RZ100, OUT3 of RZ400: 1a contact
3）Voltage pulse for SSR driving: 0/12V dc
4）Current output : 0 to 20mA, 4 to 20mA dc
- Alarm function (Max.2 points) : Temperature Alarm, HBA (Heater Break Alarm), or LBA (Control Loop Break Alarm) can be assigned.
