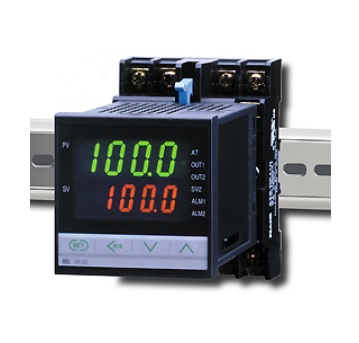

Bộ điều khiển nhiệt độ RKC SA100L

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ điều khiển nhiệt độ RKC SA100L

Thông tin sản phẩm

Bộ điều khiển nhiệt độ RKC SA100L


  • Number of Inputs :1 point
  • Input type : ※See the Input Range Code for the input range.
    1)Thermocouple : K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII
    2)RTD: Pt100 or JPt100
    3)DC voltage: 0 to 5V dc, 1 to 5V dc
    4)DC current: 0 to 20mA dc, 4 to 20mA dc ※ A 250Ω external resistor is required.
  • Sampling time: 0.5 sec.
  • Measurement accuracy:±(0.3% of displayed value+1 digit) ※Depends on the input and the range.
  • Output (OUT1) ※To be assigned from a control output, an alarm output, or an analog retransmission output.
    1) Relay contact output : 1a contact
    2) Voltage pulse output for SSR driving: 0/12V dc
    3) DC Current output : 0 to 20mA, 4 to 20mA dc

<Specification for Optional Functions>

  • Output2(OUT2)※To be assigned from a control output or an alarm output.
    1) Relay contact output : 1a contact
    2) Voltage pulse output for SSR driving: 0/12V dc
  • Alarm outputs (max.2 points): Temperature alarm or Control loop break alarm
  • External contact inputs (max.2 points): RUN/STOP switching or SV1/SV2 switching
  • Communication function: Communication method RS-485

<General Specification>

  • Power supply voltage (Rating): 100 to 240V ac/24Vac/24Vdc
  • Ambient temperature: 0 to 50°C
  • weight: Approx.120g (excluding a socket)
