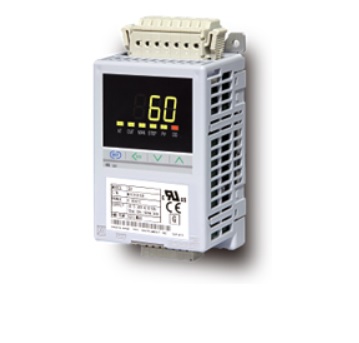

Bộ điều khiển nhiệt độ RKC SB1

Bộ điều khiển nhiệt độ RKC SB1

Bộ điều khiển nhiệt độ RKC SB1

• Number of Inputs :1 point
• Input type: Thermocouple: K, J 0 to 800°C,
  RTD Pt100, JPt100 0 to 400°C
• Sampling time: 0.25 sec.
• Measurement accuracy：±(0.3% of displayed value+1 digit) ※Depends on the input and the range.
• Output: Triac (SSR output) output: Triac (SSR) output, zero cross method, allowable load current 7A.

<Specification of Optional functions>

• Event output: Relay contact, 1a contact
• Event function (max.2 points): LBA function
• Digital input (1 point): Selectable from SV1/SV2 switching, STOP/RUN switching, MAN/AUTO switching, or Interlock release
• Communication function: Communication method RS-485
  ※Select one from Digital input and Communication function.

<General Specification>

• Power supply voltage (Rating): 100 to 240V ac
• Ambient temperature: -10 to 60°C
• Weight: Approx.130g
