Bộ điều tiết lưu lượng hãng Kytola Model 2851

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ điều tiết lưu lượng hãng Kytola Model 2851

Thông tin sản phẩm

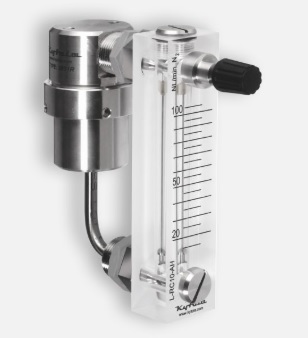

Bộ điều tiết lưu lượng hãng Kytola Model 2851


Model 2851 constant flow regulator has an AISI 316 stainless steel body and a two-piece construction for easy maintenance. It is a sturdy, industrial constant flow regulator and is designed to provide constant flow of liquids or gases regardless of pressure variations.

It is intended for low liquid flows in applications where supply or backpressure varies and for gas flows in applications where backpressure varies.

The regulator is a membrane type differential pressure controller, which is usually supplied with Model L variable area flow meter. Typical applications are control of seal waters, control of flush waters, water purging and air purging.

Technical Data
Max. flow 3.5 L/min H2O (100 NL/min air at 6 barg)
Nominal flow 2.3 L/min H2O (100 NL/min air at 6 barg)
Max. diff. pressure 20 bar
Max. static pressure 20 bar (30 bar / 30°C)
Pressure drop at nominal flow 2 bar
Max. temperature 75°C
Body AISI 316
Spring AISI 316
Membrane EPDM
Membrane plate AISI 316
Seals Nitrile (*Viton®, EPDM)
Mesh PE
Connections G 1/4" or NPT 1/4"
Weight 0.85 kg
Installation position Vertically
*) Special construction on request
