| Model |

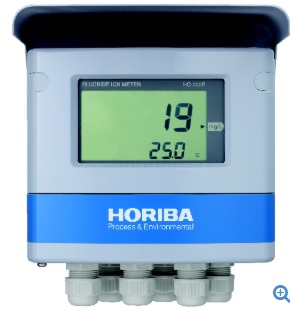

HC-300F |
| Combined sensor |
Fluoride ion electrode |
| Measurement range |
Concentration:
0 mg/L to 10000 mg/L (Display range: 0 mg/L to 11000 mg/L)
The selectable range: 10000 ,5000 ,2000 ,1000 ,500 ,200 ,100 ,50 ,20.0 ,10.0 mg/L
Temperature:
0°C to 100°C (Display range: -10°C to 110°C ) |
| Transmission output |
Output type:
4 mA to 20 mA DC: input/output isolated type
Load resistance:
Maximum: 600 Ω Case of 24 V DC power supply
Linearity:
Within ±0.08 mA (output only) |
| Contact input |
Number of inputs: 1
Contact type: No-voltage "a" contact for open collector |
| Temperature compensation |
Applicable temperature element:
Platinum resistor: 1 kΩ (0°C)
Positive relation resistor with temperature: 10kΩ(25°C)
Temperature compensation range: 0 °C to 100°C |
| Calibration |
Number of calibration points: Selectable from 1, and 2 points |
| Self-check |
Calibration error
Electrode diagnostic error
Meter error |
| Operating temperature range |
-20°C to 60°C (without freeze) |
| Power supply |
Power supply voltage range: 24 V DC (21V to 32V)
Power consumption: 0.6 W(max) |
| Compatible standards |
CE marking, FCC Rules |
| Structure |
Installation: Outdoor installation type
Installation method: Mounted on 50A pole or wall
Protection code: IP65 IEC60529, JIS C0920
Case material: Aluminum alloy (coated with epoxy-denatured melamine resin) |
