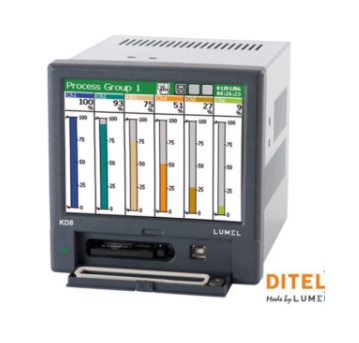

Bộ ghi dữ liệu, ghi nhiệt độ DITEL KD8
KD8 recorder is applied as a data acquisition station in measuring systems. It finds application to measure, visualize and supervise technical process parameters in various industrial branches, e.g. in pharmacy, food, chemical.
KD8 recorder complies with the regulation 21 CFR Part 11, regulation for electronic records and signatures issued by Food and Drug Administration (FDA).
MEASURING INPUTS and OUTPUTS
- 3 or 6 galvanically isolated analog measuring channels
- 6 or 12 alarm outputs (2 for each chanel)
- 4 or 8 digital inputs
DATA EXPOSURE
- Linear and bar trends,
- Digital and analog indicators
- Statistics. Each channel has the possibility to assign settings as: colour, name, range and presentation view. To illustrate the process run, the customer can choose many forms of data presentation
DATA ARCHIVING
- Exchangeable external memory (CompactFlash card)
- 6 MB internal memory with data support
WORK SAFETY
