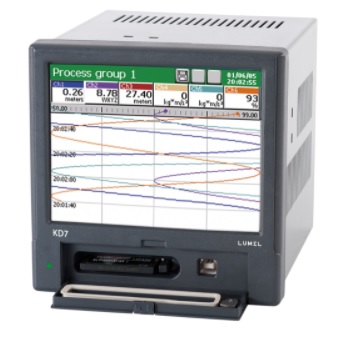

Bộ ghi dữ liệu, ghi nhiệt độ LUMEL KD7

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ ghi dữ liệu, ghi nhiệt độ LUMEL KD7

Thông tin sản phẩm

Bộ ghi dữ liệu, ghi nhiệt độ LUMEL KD7


  • easy and intuitive servicing based on the graphical Windows and touch panel,
  • depending on needs, the user has the choice of following communication interfaces: RS-232, RS-485 MODBUS Master and Slave, MODBUS Slave TCP/IP (NEW), ETHERNET 10 Base-T, USB 1.1 Device,
  • possibility to exchange of configuration data between the recorder and PC through  the USB interface or the CompactFlash card,
  • the „HTTP server” (WWW) enables to carry out through the WWW browser, the preview of the recorder current state* and the sampling
  • mathematical functions,
  • archiving and visualisation of measuring data transmitted to KD7 from external devices via RS-485 MODBUS or Ethernet.

MEASURING INPUTS and OUTPUTS
Depending on the executions KD7 has:

  • 6 or 12 galvanically isolated analog measuring channels,
  • 16 measuring channels for data transmitted through communication interfaces,
  • 16 or 32 alarms and 8 or 16 digital inputs,
  • 4 or 8 analog outputs.

DATA EXPOSURE
To illustrate the process run, the customer can choose many forms of data presentation:

  • linear, bar trends, and circular,
  • digital and analog indicators,
  • statistics.
    Each channel has the possibility to assign settings as: colour, name, range and presentation view.
