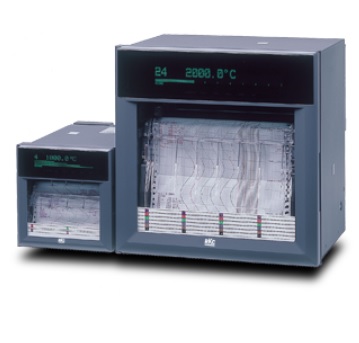

Bộ ghi nhiệt độ, dữ liệu RKC SBR-EW100, EW180

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ ghi nhiệt độ, dữ liệu RKC SBR-EW100, EW180

Thông tin sản phẩm

Bộ ghi nhiệt độ, dữ liệu RKC SBR-EW100, EW180


  • Input: Thermocouples, RTD, DC voltage, DC current (A shunt resistor), contact input, and voltage input
  • Number of inputs: 1 point (1 pen), 2 points (2 pens), 3 points (3 pens), 4 points (4 pens), 6 points (6 dotting points), 12 points (12 dotting points), 18 points (18 dotting points), 24 points (24 dotting points) ※12, 18, and 24 points are available only on SBR-EW180.
  • Measuring cycle: Pen model; 0.125 sec. per channel (all channels) Dotting model: 1 sec./6 points, 2.5 sec./12 to 24 dotting points
  • Recording cycle: Pen model: Continuous recording at each channel Dotting model: 6 points/10 seconds, 12 points/15 seconds, 18 points/20 seconds, 24 points/30 seconds
  • Recording method: Pen model: Disposable felt tip pen,Plotter pen Dotting model: 6-color dotting
  • Chart feed speed: Pen model: 5 to 12000mm/h (82 steps) Dotting model: 1 to 1500mm/h (1mm step)
  • Effective recording width: 100mm (SBR-EW100), 180mm (SBR-EW180)<Specification of Options>
  • Alarm output (Relay contact output):
    SBR-EW100: 2, 4, 6 points
    SBR-EW180: 2, 4, 6, 12, 24 points
    Communication interface: RS-422A / RS-485, Modbus RTUArithmetic operation function: Number of arithmetic operation channels
    Pen model: 8 channels:
    Dotting model: 12 channels (SBR-EW100), 24 channels (SBR-EW180)
    General purpose arithmetic, Four arithmetic, Square root, Absolute value, common logarithm, exponential, power, Relational operations, logical operation: MAX, MIN, AVE, SUM, MAX-MIN
    *Arithmetic operation result can be printed out on the chart paper.<General specification>
  • Remote control (5 points): Start/stop recording, Chart speed switch Message printout (5 points), Manual printout, Alarm ACK,Set the
  • clock, Math start/stop, Reset computation
  • Power supply voltage (Rating): 100 to 240V AC
