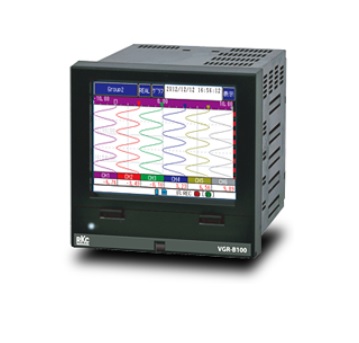

Bộ ghi nhiệt độ, dữ liệu RKC VGR-B100

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ ghi nhiệt độ, dữ liệu RKC VGR-B100

Thông tin sản phẩm

Bộ ghi nhiệt độ, dữ liệu RKC VGR-B100


  • Input: Thermocouple, RTD, DC voltage, DC current (A shunt resistor is necessary)
  • Number of Inputs: 3, 6, 12 points (Inputs are isolated)
  • Measurement cycle: 100 msec.
  • F-value calculation function: F-value (number of minutes required to kill microorganisms by heating) of each channel is calculated from the measured temperature.
    ※The calculation can be set and viewed by the supplied software.
  • Measurement accuracy: See list of measurement accuracy.
  • Display unit: Touch screen type, 5.7 inch TFT color LCD (320×240 dots)
  • External storage media: SD memory card, SD card specification: Max. 2GB,SDHC specification: Max. 32GB
  • Data recording cycle: 1 sec. to 60 min. *100ms is selectable only for sub recording.
  • File storage cycle: 1 hour to 1 year
  • Alarm function: Up to 4 points per channel
  • Alarm type: High limit, low limit, and abnormal data
  • Alarm output: Overall output, 1 point (open collector output)
  • Ethernet(10BSE-T): Protocol, Modbus/TCP * HTTP server, FTP server

<Specification of Options>

  • Communication interface: RS-485, Modbus RTU
  • Digital inputs (9 points): Dry contact input
  • Digital outputs (12 points): Open collector output
  • Relay contact output (6 points): Relay contact output
