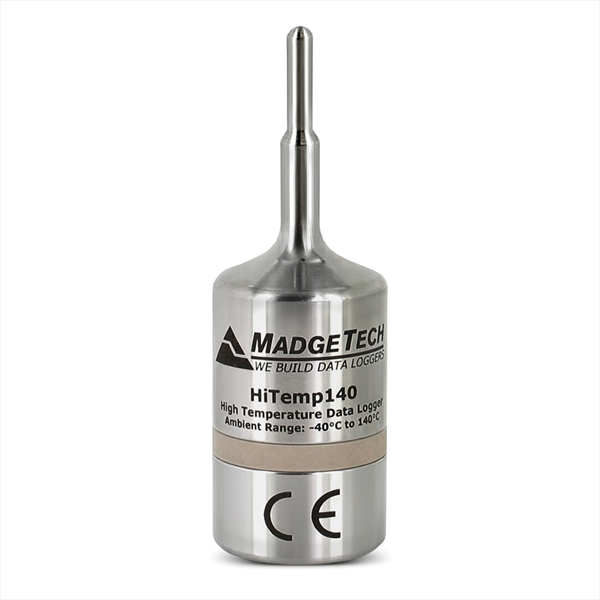

Bộ ghi nhiệt độ HiTemp140-FP MadgeTech
- The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, tubing, test tube and other small diameter or delicate applications. Because of the flexible probe, the risks of breakage (both vial and probe) generally associated with stainless steel probe loggers are diminished and the location and placement of the probe is easy to manipulate. The device records and stores up to 32,700 time stamped readings and is equipped with non-volatile solid state memory.
- The HiTemp140-FP can be configured for delayed start and is capable of reading rates as often as four readings per second, up to once every 24 hours.
- The HiTemp140-FP is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes.
- Commonly used for mapping, validation and monitoring of high temperature surfaces and environments, this stainless steel data logger is available in several flexible probe lengths. The flexible probe is coated with PFA insulation and can withstand temperatures up to 260 °C (500 °F) with an accuracy of ±0.1 °C.
Thông số kỹ thuật
TEMPERATURE
+ Temperature Sensor : Flexible RTD Probe
+ Temperature Resolution : 0.01 °C (0.018 °F)
+ Temperature Calibrated Accuracy : ±0.1 °C (0.18 °F)
+ Probe Temperature Range : -60 °C to +260 °C (-76 °F to +500 °F)
GENERAL
+ Memory : 32,767 readings
+ Reading Rate : 1 reading every 0.25 seconds up to 1 reading every 24 hours
+ Baud Rate : 125,000
+ Battery Life : 1 year typical (1 minute reading rate at 25 °C / 77 °F) ; User Replaceable Battery
+ Material : Body: 316 Stainless Steel ; Probe: PFA Insulated Cable
+ IP Rating : IP68
+ Submersible : Yes
+ Operating Environment : -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH, 0 PSIA to 60 PSIA; With Thermal Shield: -200 °C to +250 °C (-328 °F to +482 °F) (Body of Logger Cannot Exceed 150 °C)
+ Required Interface Package : IFC400 or IFC406
+ Phê chuẩn: CE
+ Kích thước: Thân: 2,95 in x 0,9 in x 0,97 in (75 mm x 24,6 mm x 24,6 mm)
Đầu dò: HiTemp140-FP-6: 6 in x 0,10 in (152,5 mm x 2,5 mm)
HiTemp140-FP -12: 12 in x 0,10 in (304,8 mm x 2,5 mm)
HiTemp140-FP-36: 36 in x 0,10 in (914 mm x 2,5 mm)
HiTemp140-FP-72: 72 in x 0,10 in (1829 mm x 2,5 mm )
