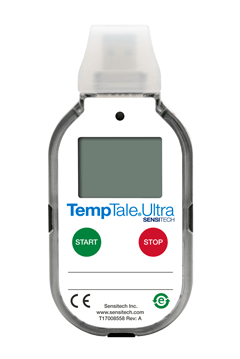

Bộ ghi nhiệt độ TempTale Ultra 64K Sensitech
Monitoring Recording Options Single Use, Single-Use with User Programmable Overwrite, or Multiple Use Temperature Measurement Range -30°C to + 70°C Temperature Accuracy Range ± 1.0°C from -30°C to -10°C ± 0.5°C from -10°C to +45°C ± 1.0°C from +45°C to +70°C Temperature Resolution 0.1°C/F over full temperature measurement range Data Memory Type Non-volatile 64K Flash memory Data Storage Capacity 64,000 data points (64K) Battery Life / Type 12 months operating life / 3.6v coin cell lithium battery – non-replaceable Data Sampling Interval Programmable from 30 seconds up to a maximum of 120 minutes Water Resistant Housing IP64 (with protective cap over USB connector) Start Up Delay 0 minutes to 24 hours Programmable Alarms • Programmable high and low limits – alarm is triggered when temperature exceeds set limits; • Up to six alarm types (single temperature limit, temperature range, dual temperature range, MKT, duration) Alarm Delay Time Thresholds Single event (continuous) or cumulative LCD Indicators Started, start-up delay, running, stopped; Alarm status: OK (), Alarmed (); Trip summary data (average, minimum, maximum); Current temperature reading; Time remaining / time elapsed against alarm-time thresholds; Marked event Start Up Options Manual push button or automatic launch option Dimensions 108mm L x 50.2mm W x 15.2mm H
Quality Assurance Certifications CE, EN/12830, RTCA – DO160G; 3-point NIST® traceable Certificate of Calibration Minimum System Requirements Windows® PC w/ Windows® 7 or higher; Adobe® Reader 9.0 or higher Data Analysis and Cold Chain Continuous Improvement Software TempTale Manager® Desktop 8.2 or higher; ColdStream® Cold Chain Manager 1.8A or higher Computer Interface USB 2.0, A-type plug Ship air, ground, ocean in accordance with – IATA 2018 IATA Dangerous Goods Regulations 59th Edition; UN 3091, Packing Instruction 970 Section II – Excepted Lithium Metal and Lithium Alloy Cells and Batteries; U.S. Department of Transportation Lithium Battery Hazardous Material Regulations 49 CFR Parts 171-180; 2016 International Maritime Dangerous Goods Regulations, 38-16 Packing Instruction 903
