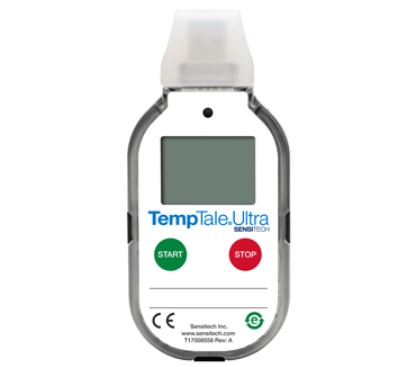

Bộ ghi nhiệt độ TempTale Ultra Probeless Dry Ice Sensitech
Monitoring Recording Options Single Use, Single Use with User Programmable Overwrite Operating Range -95°C to +30°C (-139°F to +86°F) Measurement Range -90°C to +30°C (-130°F to +86°F) Temperature Accuracy Range ±1.0°C from -90°C to +30°C (±1.8°F from -130°F to +86°F) Temperature Resolution 0.1°C over full temperature measurement range Data Storage Capacity 16,000 data points (16K) Operating Life / Battery Type • 30 days of continuous exposure to dry ice temperatures at or below -80°C • Two (2) TL-2450 3.6v coin cell lithium batteries—non-replaceable Data Sampling Interval Programmable from 30 seconds up to a maximum of 15 minutes in 30 second increments Start Up Delay 0 minutes to 24 hours in 30 second increments Programmable Alarms • Programmable high and low limits à alarm is triggered when temperature exceeds set limits • Up to six alarms (single temperature limit, temperature range, dual temperature range, MKT, duration) Alarm Delay Time Thresholds Single event (continuous), cumulative LCD Indicators • Started, start-up delay, running, stopped • Alarm status: OK (), Alarmed () • Trip summary data (average, minimum, maximum) • Current temperature reading • Time remaining / time elapsed against alarm thresholds • Total Time Above High/Low Alarm limits LED Indicators • Blinking Startup LED • Blinking Stop LED • File generation in process • Printer-ready mode activated for printing of PDF report to USB printer
Start Up Options Manual push button or automatic launch option Typical Dimensions 108mm L x 50.2mm W x 15.2mm H Weight Approximately 65 g (2.3 oz) PDF Languages English, German, French, Spanish, Chinese PDF File Formats PDF or PDF/A IP Rating IP64 (with silicon cap on) Time Accuracy ± 5 minutes per month when exposed to temperatures at or above -90°C Quality Assurance Certifications • CE, RTCA – D016ØG compliant, RoHS compliant, Response time tested to U.S. Pharmacopeia (USP) <1118> and EN 12830 standards • 3-point NIST® Traceable Certificate of Calibration • Validation Manual Data Analysis Software TempTale® Manager Desktop Software 8.3 or higher ColdStream® Cold Chain Manager Software 1.8B or higher Minimum System Requirements Windows PC w/ Windows 7 or higher; Adobe Reader 9.0 or higher Computer Interface USB 2.0, A-type plug Ship Air in Accordance With 2018 IATA Dangerous Goods Regulations 59th Edition
