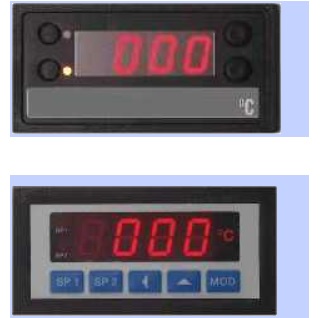

Bộ hiển thị nhiệt độ Maurer DW 1310 DW 1312 DS 1000, NG 1000

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ hiển thị nhiệt độ Maurer DW 1310 DW 1312 DS 1000, NG 1000

Thông tin sản phẩm

Bộ hiển thị nhiệt độ Maurer DW 1310 DW 1312 DS 1000, NG 1000



DW 1310 DW 1312 DS 1000
Display 7-segment-display, 13mm red 7-segment-display, 13mm red 7-segment-display, 13mm red
Display range ± 1999 Digit ± 1999 Digit ± 1999 Digit
Measuring rate app. 2,5 meas./sec app. 2,5 meas./sec app. 2,5 meas./sec
Accuracy < ± 1 digit ± 0,15% of indication < ± 1 digit ± 0,15% of indication < ± 1 Digit ± 0,1 % of meas.value
Influence of temperature < ±- 0,08 digit/K (refering to 25°C) < ± 0,08 Digit/K (refering to 25°C)
Limit values 2 changer 250 VAC / app. 8A 2 changer 250 VAC / app. 5A
Interface RS 232 - RXD, TXD with test software
Programming 27 measure routines, with CPU
Working temperature 0 °C ......+50 °C 0 °C ......+50 °C -10 °C ......+50 °C
Supply voltage 230V AC, +10/-15%, 7 VA 230V AC, +10/-15%, 7 VA 230V AC, +10/-15%, 3 VA
Connection screw terminal for approx. 1,5 mm² screw terminal for approx. 1,5 mm² lift terminal
Dimension app. 96 x 48 x 135 mm (WxHxD) app. 96 x 48 x 135 mm (WxHxD) app. 96 x 48 x 125 mm (WxHxD)
Installation depth app. 126 mm app. 126 mm app. 115 mm
Panel cut-out 91,5 x 43 mm 91,5 x 43 mm 90,5 x 44,5 mm
Weight app. 450 g app. 490 g


Datasheet
Datasheet



NG 1000
Primary 230V AC 50/60 Hz
Secondary 24V DC 500 mA (stab.)
Power 16 VA
Residual ripple at IL=500mA < 20 mV
Dimension ca. 124 x 71 x 60 mm (L x B x H)
Weight app. 770 g
Mounting snap in
