Bộ hiển thị và điều khiển lưu lượng FLOMOTION MV145, MV255

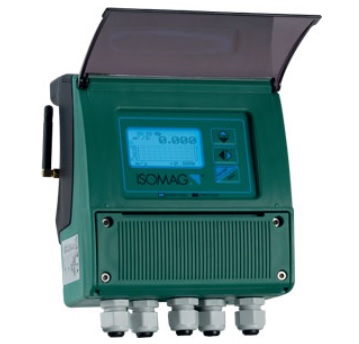

The MV145 and MV255 FLOWIZ are battery powered converters compatible with ISOMAG flow sensors.
The MV145 and MV255 converters can be powered from A/C, Solar, lithium or alkaline batteries and have battery backup. The main batteries can be easily replaced without interrupting the measurement. Batteries have an estimated life of 15 years or more based on measurement conditions.
Other features include Digital Outputs, Analog Input/Outputs and the ability to manage up to two pressure or temperature sensors. RS485 & MODBUS communications are available. Store years of data in the 4GB Datalogger. The Built-In-Verification (BIV) system constantly monitors various sensor parameters, anticipating possible problems. The converters are housed in a rugged, corrosion resistant NEMA-6 (IP67) enclosure of fiberglass reinforced nylon or painted cast aluminum.
The MV255 FLOWIZ model has an integral 3G cellular modem that allows wireless transmission of all measured flow and pressure/temperature data. The secure encrypted data is compressed to reduce the time and costs of data transmission, SMS alarms can be sent in cases where the process thresholds are exceeded. Remote program adjustments can be made via SMS text message.
