| Technical data |
| Model |

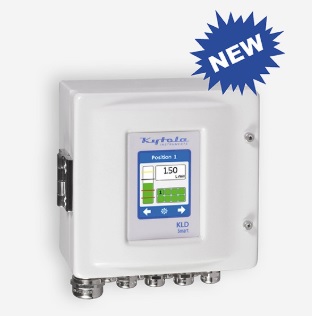

KLDS-1 |
KLDS-8 |
| Supply voltage |
10 – 30 VDC |
10 – 30 VDC |
| Sensor types |
Kytola coil, NAMUR, NPN, PNP |
Kytola coil, NAMUR, NPN, PNP |
| Communication |
Modbus RTU (RS-485), *Modbus TCP (Ethernet) |
Modbus RTU (RS-485), *Modbus TCP (Ethernet) |
| Current output |
*1 pc, 4–20 mA |
*8 pcs, 4–20 mA |
| Current input |
1 pc; linear, square root, table |
None |
| Relay output |
1 pc NC, max. 48 VAC/DC, 100 mA |
1 pc NC, max. 48 VAC/DC, 100 mA |
| Supply current (maximum) |
60 mA |
60 mA (190 mA with mA outputs) |
| Housing |
Painted steel, *stainless steel AISI 316 |
Painted steel, *stainless steel AISI 316 |
| IP class |
IP65 |
IP65 |
| Ambient temperature |
–20°C...+60°C
(relative humidity < 85 %,non-condensing) |
–20°C...+60°C
(relative humidity < 85 %, non-condensing) |
| Dimensions |
100 x 140 x 55 mm |
149 x 160 x 80 mm |
| Weight |
0.7 kg |
1.5 kg |
| *) Special construction on request |
