Bộ mã hóa vòng quay encoder wachendorff wdga 58a profibus dp wdga 58b wdgf 58m ssi wdga 58d ethercat wdgf 58m biss

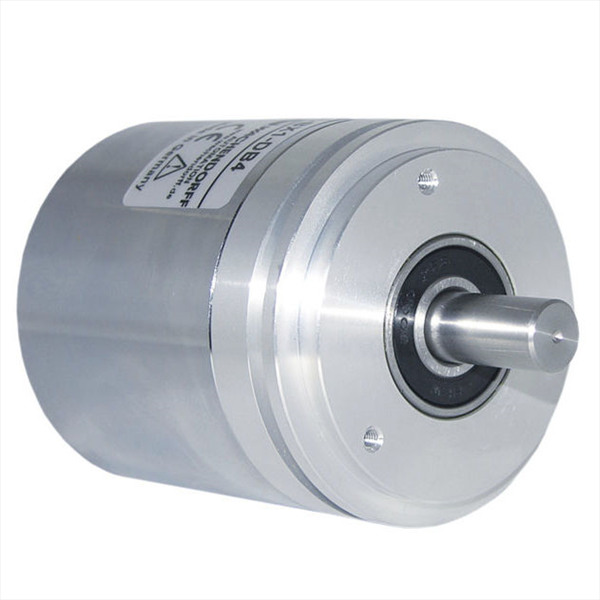

Absolute shaft encoder, magnetic, RS485 WDGA 58A
Synchro flange;
Housing: Ø 58 mm
14/18-bit Single-turn/Multi-turn;
Shaft: Ø 6 mm / Ø 10 mm
CRC checksum
EnDra® multi-turn technology:
maintenance-free and environmentally friendly
Compact industrial model
Interface: RS485
Single-turn/Multi-turn
- Max. 16,384 steps per revolution (14 bit single-turn)
- Max. 2´32 total revolutions (ST + MT 32 bit)
Preset input
Direction of counting changeable
Status indicator LED
EMC: EN 61000-6-2, EN 61000-6-3
