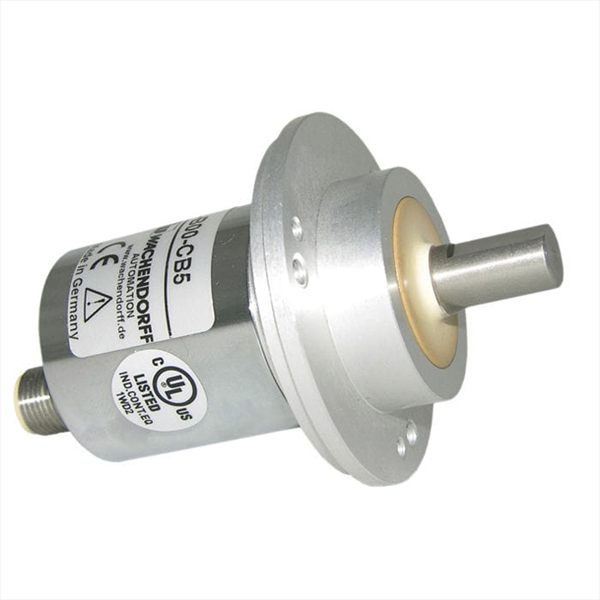

Absolute shaft encoder, magnetic, CANopen WDGA 58S,
Salt mist IEC 60068-2-11
High pressure / steam cleaning
Corrosion resistance
Clamping flange;
Housing: Ø 58 mm
14/18-bit Single-turn/Multi-turn;
Shaft: Ø 10 mm;
Communication Profile according to CiA 301
Device Profile for encoder CiA 406 V3.2 class C2;
binary code
Resistance to salt mist (IEC 60068-2-11) succeeded
Protection: IP67 + IP69k (high pressure / steam cleaning)
Corrosion resistance
EnDra®: maintenance-free and environmentally friendly
Single-turn/Multi-turn
- Max. 16,384 steps per revolution (12 bit)
- Max. 262,144 revolutions (18 bit) with high precision value up to 39 Bit
CANopen
- Communication Profile according to CiA 301
- Device Profile for encoder CiA 406 V3.2 class C2
Status indicator LED (CiA 303-3)
Configurable without field bus hood via LSS (CiA 305) or optional via SDO
Extensive CANopen functionality
- Positions-, Speed- and Accellerationsobjects
- Work area supervision and Encoder cams
- up to 4 Transmit PDO´s individually configurable
- Scale functions
- Heartbeat, Nodeguarding and extensive diagnostics
Forward-looking technology with 32 Bit processor
2-colour-LED as indicator for operating condition and
error message appropriate CiA 303-3
