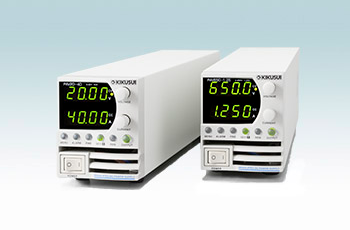

Bộ nguồn 1 chiều PAV Series Kikusui

Mã sản phẩm: PAV Series |
Thương hiệu: Kikusui
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Bộ nguồn 1 chiều
Model: PAV Series
Hãng: Kikusui
Thông tin sản phẩm
- Outline
+ The PAV series is a compact, high power density, high performance constant voltage (CV) / constant current (CC) variable switching power supply. The PAV consists of 64 models total*1 with 4 types of maximum power outputs at 200 W, 400 W, 600 W and 800 W and output voltages from 10 V through 650 V. All models are standardized to a same size with 2U high (approximately 88 mm) and have high power density for bench-top use. The PAV series allows sequence settings with an embedded CPU as well as analog control.
+ Parallel operation (up to 6 units)*2 and synchronized operation features are employed to allow extended output current. The PAV series is equipped standard with USB, RS232C and RS485 as communication interfaces which are essential for system upgrades. LAN*3 interface is also available as an option. A harmonic current control circuit is embedded with a power factor of 0.99 to take power environment into account.

- Ultra-compact high power
19 inch rack-mount (max 6 units) 200 W / 400 W / 600 W / 800 W models available.

- Standard Communication Interface
LAN*, USB, RS232C, and RS485 as standard communication interfaces. *LAN is a factory option

- Multi-output system configuration
A variable power supply system of up to 31 channels can be configured using the built-in LAN / USB / RS232 / RS485 ports.

- Parallel operation
Parallel operation is possible using several PAV series power supplies with the same voltage and current ratings (up to six using master-slave parallel connection with output current balance function).

- Application software
Sequence Creation Software Wavy for PAV (SD024-PAV)
