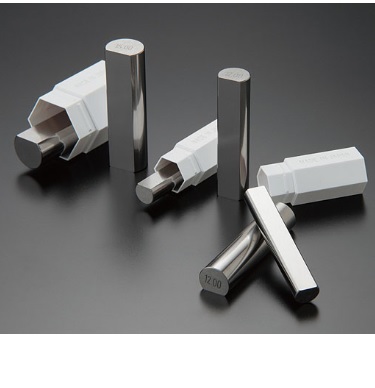

Bộ trục chuẩn, Pin Gauge Eisen EDP-1, EDP-2

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ trục chuẩn, Pin Gauge Eisen EDP-1, EDP-2

Thông tin sản phẩm

Bộ trục chuẩn, Pin Gauge Eisen EDP-1, EDP-2


EDP-1 Series

Module (mm) For internal gear wheels For external gear wheels Price(Yen)
Diameter(V)×Height of cutout(V1)mm Diameter(U)mm
0.5 1.00×0.84 0.90 59,500
1.0 2.00×1.68 1.80
1.25 2.50×2.10 2.25
  2.40×2.00 (*) ―
1.667 3.333 ×2.80 3.00
2.5 5.00×4.26 4.50
5.0 10.00×8.40 9.00
10.0 20.00× 16.80 18.00

  • Note: Use module 1.25 when the number of gear teeth is 6, 7, 8, 9, 10 or 11.

EDP-2 Series

Module (mm) For internal gear wheels For external gear wheels Price(Yen)
Diameter(V)×Height of cutout(V1)mm Diameter(U)mm
0.75 1.50 × 1.20 1.35 61,500
  ――― 1.40 (注1)
1.5 3.00 × 2.52 2.70
2.0 4.00 × 3.36 3.60
3.0 6.00 × 5.04 5.40
3.75 7.50 × 6.30 6.75
  ――― 7.00 (注2)
4.5 9.00 × 7.56 8.10
6.0 12.00 × 10.08 10.80
7.5 15.00 × 12.60 13.50

  • Note 1: Use module 0.75 when the number of gear teeth is 8
  • Note 2: Use module 3.75 when the number of gear teeth is 6, 7, 8, 9, 10 or 11.
