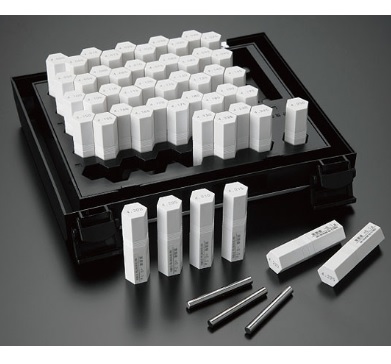

Bộ trục chuẩn, Pin Gauge Eisen EH-0A, EH-0B, EH-0C, EH-0D, EH-1A, EH-1B, EH-1C, EH-1D, EH-2A, EH-2B, EH-2C, EH-2D, EH-3A, EH-3B, EH-3C, EH-3D, EH-4A, EH-4B, EH-4C, EH-4D

Mã sản phẩm: |

Thương hiệu:

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ trục chuẩn, Pin Gauge Eisen EH-0A, EH-0B, EH-0C, EH-0D, EH-1A, EH-1B, EH-1C, EH-1D, EH-2A, EH-2B, EH-2C, EH-2D, EH-3A, EH-3B, EH-3C, EH-3D, EH-4A, EH-4B, EH-4C, EH-4D

Thông tin sản phẩm

Bộ trục chuẩn, Pin Gauge Eisen EH-0A, EH-0B, EH-0C, EH-0D, EH-1A, EH-1B, EH-1C, EH-1D, EH-2A, EH-2B, EH-2C, EH-2D, EH-3A, EH-3B, EH-3C, EH-3D, EH-4A, EH-4B, EH-4C, EH-4D

Details of series

Set No.	Step (mm)	Set Size (mm)	Number of pins	Class0 Price	Class1 Price
EH-0A	0.005 mm	0.10 0.105 … 0.245 0.25	31	---	44,500
EH-0B	0.005 mm	0.25 0.255 … 0.495 0.50	51	57,900	44,500
EH-0C	0.005 mm	0.50 0.505 … 0.745 0.75	51	57,900	44,500
EH-0D	0.005 mm	0.75 0.755 … 0.995 1.00	51	57,900	44,500
EH-1A	0.005 mm	1.00 1.005 … 1.245 1.25	51	46,800	36,000
EH-1B	0.005 mm	1.25 1.255 … 1.495 1.50	51	46,800	36,000
EH-1C	0.005 mm	1.50 1.505 … 1.745 1.75	51	46,800	36,000
EH-1D	0.005 mm	1.75 1.755 … 1.995 2.00	51	46,800	36,000
EH-2A	0.005 mm	2.00 2.005 … 2.245 2.25	51	46,800	36,000
EH-2B	0.005 mm	2.25 2.255 … 2.495 2.50	51	46,800	36,000
EH-2C	0.005 mm	2.50 2.505 … 2.745 2.75	51	46,800	36,000
EH-2D	0.005 mm	2.75 2.755 … 2.995 3.00	51	46,800	36,000
EH-3A	0.005 mm	3.00 3.005 … 3.245 3.25	51	46,800	36,000
EH-3B	0.005 mm	3.25 3.255 … 3.495 3.50	51	46,800	36,000
EH-3C	0.005 mm	3.50 3.505 … 3.745 3.75	51	46,800	36,000
EH-3D	0.005 mm	3.75 3.755 … 3.995 4.00	51	46,800	36,000
EH-4A	0.005 mm	4.00 4.005 … 4.245 4.25	51	46,800	36,000
EH-4B	0.005 mm	4.25 4.255 … 4.495 4.50	51	46,800	36,000
EH-4C	0.005 mm	4.50 4.505 … 4.745 4.75	51	46,800	36,000
EH-4D	0.005 mm	4.75 4.755 … 4.995 5.00	51	46,800	36,000
EH-5A	0.005 mm	5.00 5.005 … 5.245 5.25	51	46,800	36,000
EH-5B	0.005 mm	5.25 5.255 … 5.495 5.50	51	46,800	36,000
EH-5C	0.005 mm	5.50 5.505 … 5.745 5.75	51	46,800	36,000
EH-5D	0.005 mm	5.75 5.755 … 5.995 6.00	51	46,800	36,000
EH-6A	0.005 mm	6.00 6.005 … 6.245 6.25	51	57,900	44,500
EH-6B	0.005 mm	6.25 6.255 … 6.495 6.50	51	57,900	44,500
EH-6C	0.005 mm	6.50 6.505 … 6.745 6.75	51	57,900	44,500
EH-6D	0.005 mm	6.75 6.755 … 6.995 7.00	51	57,900	44,500
EH-7A	0.005 mm	7.00 7.005 … 7.245 7.25	51	70,100	53,900
EH-7B	0.005 mm	7.25 7.255 … 7.495 7.50	51	70,100	53,900
EH-7C	0.005 mm	7.50 7.505 … 7.745 7.75	51	70,100	53,900
EH-7D	0.005 mm	7.75 7.755 … 7.995 8.00	51	70,100	53,900
EH-8A	0.005 mm	8.00 8.005 … 8.245 8.25	51	72,200	55,500
EH-8B	0.005 mm	8.25 8.255 … 8.495 8.50	51	72,200	55,500
EH-8C	0.005 mm	8.50 8.505 … 8.745 8.75	51	72,200	55,500
EH-8D	0.005 mm	8.75 8.755 … 8.995 9.00	51	72,200	55,500
EH-9A	0.005 mm	9.00 9.005 … 9.245 9.25	51	72,200	55,500
EH-9B	0.005 mm	9.25 9.255 … 9.495 9.50	51	72,200	55,500
EH-9C	0.005 mm	9.50 9.505 … 9.745 9.75	51	72,200	55,500
EH-9D	0.005 mm	9.75 9.755 … 9.995 10.00	51	72,200	55,500
EH-10A	0.005 mm	10.00 10.005 … 10.245 10.25	51	---	69,500
EH-10B	0.005 mm	10.25 10.255 … 10.495 10.50	51	---	69,500
EH-10C	0.005 mm	10.50 10.505 … 10.745 10.75	51	---	69,500
EH-10D	0.005 mm	10.75 10.755 … 10.995 11.00	51	---	69,500
EH-11A	0.005 mm	11.00 11.005 … 11.245 11.25	51	---	69,500
EH-11B	0.005 mm	11.25 11.255 … 11.495 11.50	51	---	69,500
EH-11C	0.005 mm	11.50 11.505 … 11.745 11.75	51	---	69,500
EH-11D	0.005 mm	11.75 11.755 … 11.995 12.00	51	---	69,500
EH-12A	0.005 mm	12.00 12.005 … 12.245 12.25	51	---	69,500
EH-12B	0.005 mm	12.25 12.255 … 12.495 12.50	51	---	69,500
EH-12C	0.005 mm	12.50 12.505 … 12.745 12.75	51	---	69,500
EH-12D	0.005 mm	12.75 12.755 … 12.995 13.00	51	---	69,500

※Individual gauges with diameters of φ0.2~φ10.005 can all be used as master pin gauges (class 0).
※Individual gauges with diameters of φ10.01 or larger are standard pin gauges (class 1).

Bộ trục chuẩn, Pin Gauge Eisen EH-0A, EH-0B, EH-0C, EH-0D, EH-1A, EH-1B, EH-1C, EH-1D, EH-2A, EH-2B, EH-2C, EH-2D, EH-3A, EH-3B, EH-3C, EH-3D, EH-4A, EH-4B, EH-4C, EH-4D

Bộ trục chuẩn, Pin Gauge Eisen EH-0A, EH-0B, EH-0C, EH-0D, EH-1A, EH-1B, EH-1C, EH-1D, EH-2A, EH-2B, EH-2C, EH-2D, EH-3A, EH-3B, EH-3C, EH-3D, EH-4A, EH-4B, EH-4C, EH-4D

Bộ trục chuẩn, Pin Gauge Eisen EH-0A, EH-0B, EH-0C, EH-0D, EH-1A, EH-1B, EH-1C, EH-1D, EH-2A, EH-2B, EH-2C, EH-2D, EH-3A, EH-3B, EH-3C, EH-3D, EH-4A, EH-4B, EH-4C, EH-4D
