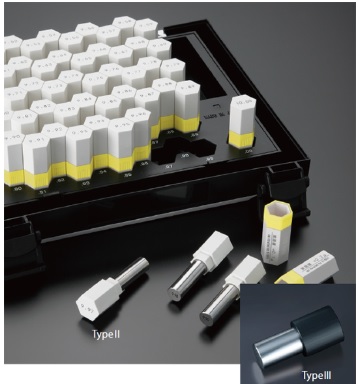

Bộ trục chuẩn, Pin Gauge Eisen ES-7A, ES-7B, ES-8A, ES-8B, ES-9A, ES-9B, ES-10A, ES-10B, ES-11A, ES-11B, ES-12A, ES-12B, ES-13A, ES-13B

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Bộ trục chuẩn, Pin Gauge Eisen ES-7A, ES-7B, ES-8A, ES-8B, ES-9A, ES-9B, ES-10A, ES-10B, ES-11A, ES-11B, ES-12A, ES-12B, ES-13A, ES-13B

Thông tin sản phẩm

Bộ trục chuẩn, Pin Gauge Eisen ES-7A, ES-7B, ES-8A, ES-8B, ES-9A, ES-9B, ES-10A, ES-10B, ES-11A, ES-11B, ES-12A, ES-12B, ES-13A, ES-13B


etails of series

Set No. Step (mm) Set
Size (mm)		 Number
of pins		 Class0 Price Class1 Price
ES-0A 0.01 mm 0.20 0.21 … 0.49 0.50 31 74,400 62,000
ES-0B 0.01 mm 0.50 0.51 … 0.99 1.00 51 96,000 80,000
ES-1A 0.01 mm 1.00 1.01 … 1.49 1.50 51 82,800 69,000
ES-1B 0.01 mm 1.50 1.51 … 1.99 2.00 51 82,800 69,000
ES-2A 0.01 mm 2.00 2.01 … 2.49 2.50 51 82,800 69,000
ES-2B 0.01 mm 2.50 2.51 … 2.99 3.00 51 82,800 69,000
ES-3A 0.01 mm 3.00 3.01 … 3.49 3.50 51 82,800 69,000
ES-3B 0.01 mm 3.50 3.51 … 3.99 4.00 51 82,800 69,000
ES-4A 0.01 mm 4.00 4.01 … 4.49 4.50 51 82,800 69,000
ES-4B 0.01 mm 4.50 4.51 … 4.99 5.00 51 82,800 69,000
ES-5A 0.01 mm 5.00 5.01 … 5.49 5.50 51 91,200 76,000
ES-5B 0.01 mm 5.50 5.51 … 5.99 6.00 51 91,200 76,000
ES-6A 0.01 mm 6.00 6.01 … 6.49 6.50 51 91,200 76,000
ES-6B 0.01 mm 6.50 6.51 … 6.99 7.00 51 91,200 76,000
ES-7A 0.01 mm 7.00 7.01 … 7.49 7.50 51 108,000 90,000
ES-7B 0.01 mm 7.50 7.51 … 7.99 8.00 51 108,000 90,000
ES-8A 0.01 mm 8.00 8.01 … 8.49 8.50 51 120,000 100,000
ES-8B 0.01 mm 8.50 8.51 … 8.99 9.00 51 120,000 100,000
ES-9A 0.01 mm 9.00 9.01 … 9.49 9.50 51 120,000 100,000
ES-9B 0.01 mm 9.50 9.51 … 9.99 10.00 51 120,000 100,000
ES-10A 0.01 mm 10.00 10.01 … 10.49 10.50 51 --- 232,000
ES-10B 0.01 mm 10.50 10.51 … 10.99 11.00 51 --- 232,000
ES-11A 0.01 mm 11.00 11.01 … 11.49 11.50 51 --- 232,000
ES-11B 0.01 mm 11.50 11.51 … 11.99 12.00 51 --- 232,000
ES-12A 0.01 mm 12.00 12.01 … 12.49 12.50 51 --- 249,000
ES-12B 0.01 mm 12.50 12.51 … 12.99 13.00 51 --- 249,000
ES-13A 0.01 mm 13.00 13.01 … 13.49 13.50 51 --- 249,000
ES-13B 0.01 mm 13.50 13.51 … 13.99 14.00 51 --- 249,000
ES-14A 0.01 mm 14.00 14.01 … 14.49 14.50 51 --- 249,000
ES-14B 0.01 mm 14.50 14.51 … 14.99 15.00 51 --- 249,000
ES-15A 0.01 mm 15.00 15.01 … 15.49 15.50 51 --- 249,000
ES-15B 0.01 mm 15.50 15.51 … 15.99 16.00 51 --- 249,000
ES-16A 0.01 mm 16.00 16.01 … 16.49 16.50 51 --- 249,000
ES-16B 0.01 mm 16.50 16.51 … 16.99 17.00 51 --- 249,000
ES-17A 0.01 mm 17.00 17.01 … 17.49 17.50 51 --- 284,000
ES-17B 0.01 mm 17.50 17.51 … 17.99 18.00 51 --- 284,000
ES-18A 0.01 mm 18.00 18.01 … 18.49 18.50 51 --- 284,000
ES-18B 0.01 mm 18.50 18.51 … 18.99 19.00 51 --- 284,000
ES-19A 0.01 mm 19.00 19.01 … 19.49 19.50 51 --- 284,000
ES-19B 0.01 mm 19.50 19.51 … 19.99 20.00 51 --- 284,000

  • ※Pin gauges also sold individually. Special sizes are also available.
  • ※ Individual gauges with diameters of φ0.2~φ10 can all be used as master pin gauges(class 0).
  • ※Individual gauges with diameters of φ10.01 or larger are standard pin gauges (class 1).
