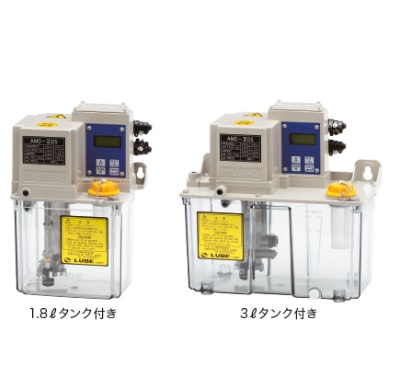

Bơm mỡ, bơm dầu bôi trơn tự động LUBE AMO-III DS
Model indication method
Specifications
| Pump |
Discharge Volume |
150mℓ/min（50Hz） 180mℓ/min（60Hz） |
| Discharge Pressure |
2.0MPa（safety valve set pressure） |
| Motor |
Voltage / Current |
AC100Vφ1/0.83A |
| AC200Vφ1/0.41A（50Hz） |
| AC100Vφ1/0.64A |
| AC200Vφ1/0.33A（60Hz） |
| Output |
20W（50Hz/60Hz）Capacitor Motor |
| Controller |
Timer |
TimerDischarge time adjustable range:: |
1〜99sec. |
| Interval time adjustable range:： |
1〜9999min. |
| |
1〜9999counts |
| ※Please specify when ordering if you want to count control. |
| Abnormal output |
Contact type |
A Contact (NO) |
| Contact capacity |
AC250V 1.5A |
| Emergency Detection |
Oil level pressure
Oil level switch |
A Contact (NO) ON at low level |
| Prerssure switch |
BContact (NC)
Operating pressure:1.7MPa OFF
Reset pressure: 0.9MPa ON |
| Liquid crystal display |
INTERVAL |
display ''INT'' |
| DISCHARGE |
display ''DIS'' |
| ALARM |
When oil side decreases, display ''OILLEVEL ERR'' When pressure is abnormal, display ''PRESSURE ERR''
|
| Operating viscosity range |
68〜1800mm²/s（50Hz） |
| Reservoir Capacity |
1.8ℓ、3ℓ（plastic） 3ℓ、4ℓ、8ℓ（sheet metal） |
| Weight |
1.8ℓReservoir：3.2kg、3ℓReservoir：4kg |
| Model |
Part Number |
| AMO-III DS-1 |
285301 |
| AMO-III DS-1-3 |
285303 |
| AMO-III DS-2 |
285302 |
| AMO-III DS-2-3 |
285304 |
低粘度Specifications
| |
Model |
Part Number |
Voltage |
Tank |
Operating viscosity range |
| 1 |
AMO-IIIDSL-1 |
285331 |
100V |
1.8ℓ |
10 ~ 800mm2/S |
| 2 |
AMO-IIIDSL-2 |
285332 |
200V |
1.8ℓ |
10 ~ 800mm2/S |
| 3 |
AMO-IIIDSL-2 |
285333 |
100V |
3ℓ |
10 ~ 800mm2/S |
| 4 |
AMO-IIIDSL-2 |
285334 |
200V |
3ℓ |
10 ~ 800mm2/S |
Directions for use
● Do not remove the oil strainer. It may cause contamination.
● Replace or clean the suction filter once a year.
● Since the viscosity changes depending on the oil temperature in summer and winter, be careful to use it within the Operating viscosity range. Please see the viscosity table.
● Do not use special additive oil, water-soluble oil or solvent.
● Regularly inspect the oil in use for contamination, etc. If any are found, immediately flush the tank and replace it with new oil.
● Please be careful about mistakes such as Voltage.
● Do not overtighten the outlet fitting. Please refer to the tightening torque chart.
● Low viscosity Specifications are also available, so please contact our Global Center.
