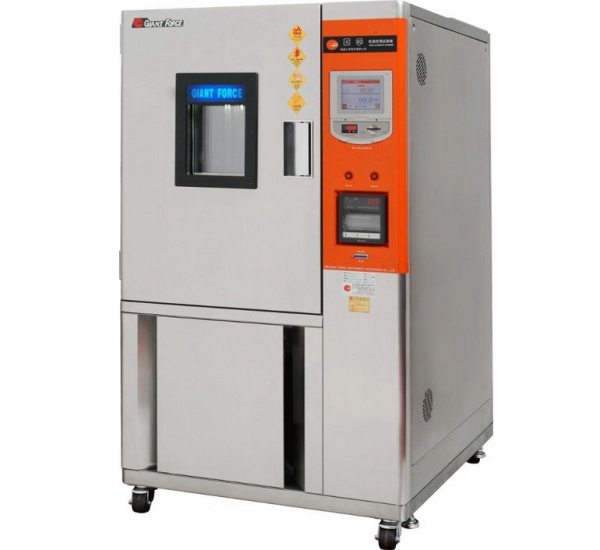

| MODEL |
GCT-017-00-SP-SD |
GCT-017-20-SP-SD |
GCT-017-35-SP-SD |
| Internal Dim. WxHxD(cm) |
35cm x 20cm x 25cm |
| External Dim. WxHxD(cm) |
66cm x 90cm x 57cm |
| Temp. Range |
0° C to 100° C(+150° C) |
-20° C to 100C° (+150° C) |
-35° C to 100° C(+150° C) |
 |
Temp. & Constancy |
+(-)0.3° C |
| Temp. & Uniformity |
±0.5° C(-35° C to 100° C)；±1.0° C(100.1° C to 150.0° C) |
| Indication Resolution |
0.01°C |
| Heat-up Time（min.） |
30/40 |
30/40 |
30/40 |
| Pull-down Time（min.） |
45 |
65 |
95 |
 |
Exterior |
Stainless steel SUS#430 Plate+Powder coated |
| Interior |
SUS#304 Stainless steel Plate |
| Insulation |
PU&Fiberglass wool |
 |
Circulation |
Sirocco fan |
| Heating |
SUS#304 Stainless steel high-speed heater |
| Cooling |
Airtight compressor+evaporator fins+air-cooling condenser |
| Controller |
LCD-9531 Programmable Control System |
| Other Components |
*Experiment separation shelves(freely adjustable 2pcs) *Cable port(60mm) |
| Safety Devices |
Overheating prevention circuit-breaker,compressor overload protection,control system overload protection,Vacuum Glass Viewing Window ; Chamber Lamp |
| Power Source [K.W.] |
2.1KW |
2.5KW |
3KW |
