MODEL
SPECIFICATION |

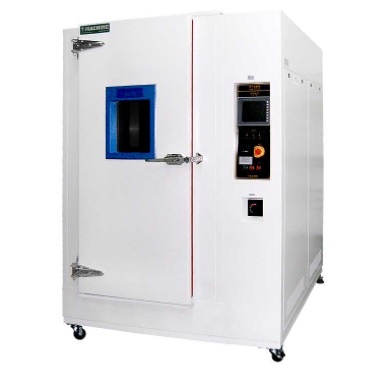

TMJ-9710C |
| Test Applicable(Optional) |
IP X1~X9, X4K, X6K, X9K |
| Internal(WxDxH)mm |
1300 x 1200 x 1860 |
| External (WxDxH)mm |
1800 x 1400 x 2400 |
| Dripping Water (Vertical) |
X1 |
Water Flow：1+0.5 mm/min |
| Dripping Water(15°Tilt) |
X2 |
Water Flow：3+0.5 mm/min |
| Spraying Water |
X3 |
Water Flow：0~0.07 L/min Spray Angel：60° |
| Splashing Water |
X4 |
Water Flow：0~0.07 L/min Spray Angel：180° |
| Splashing Water |
X4K |
Water Flow：0.6 L /min Pressure：400 kPa |
| Water Jets |
X5 |
Water Flow：12.5±1 L/min |
| Powerful Water Jets |
X6 |
Water Flow：100±5 L/min |
| Powerful Water Jets |
X6K |
Water Flow：75±5 L/min Pressure：1000 kPa |
| Immersion |
X7 |
Round Type made by PVC、Thickness 20mm、Inside Diameter: 585mm、Height: 1500mm |
| Immersion |
X8 |
| High Temp. Water Jets (IEC) |
X9 |
Water Temp.：30~90℃(Adjustable) Nozzle Distance：150~200 mm |
| High Temp. Water Jets (ISO) |
X9K |
Water Temp.：30~90℃(Adjustable) Nozzle Distance：100~150 mm |
| Oscillating Tube Radius (IPX3, IPX4) |
200~1000 mm |
| Platform Rotating Speed |
0~17 RPM (Adjustable) |
| Power |
220/380 V 3Φ
|
