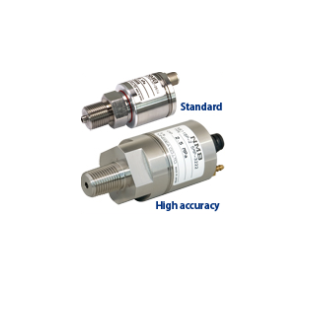

Cảm biến áp suất NS115P / NS115 series Minebea

Mã sản phẩm: NS115P / NS115 series |
Thương hiệu: Minebea
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Cảm biến áp suất
Model: NS115P / NS115 series
Hãng: Minebea
Thông tin sản phẩm
Specifications
Rated capacity 500 kPa ~ 10 MPa (NS115P / High-accuracy type)
5 MPa ~ 50 MPa (NS115 / Standard))
Safe overload 200 %R.C.
Ultimate overload 300 %R.C.
Accuracy 0.1 %R.O. (NS115P / High-accuracy type)
0.5 %R.O. (NS115 / Standard type))
(including non-linearity, hysteresis and repeatability)
Rated output Current : 4 mA ~ 20 mA (2 wires method, Load resistance 500 Ω or less, at 24 V)
Voltage : 0 V ~ 5 V, 0 V ~ 10 V (Load resistance 5 kΩ or more).
Zero adjustment range ±1 %
Power supply voltage DC 24 V(18 V ~ 28 V)
Power consumption Approx. 30 mA
Insulation resistance 1 000 MΩ or more (DC 50 V)
Temp. range, compensated -20 ℃ ~ 70 ℃
Temp. range, safe -30 ℃ ~ 80 ℃
Temp. effect on zero ±0.15 %R.O./10 ℃ (NS115P / High-accuracy type)
0.5 %R.O./10℃ (NS115 / Standard type)
Temp. effect on output ±0.15 %LOAD/10℃ (NS115P / High-accuracy type
0.5 %LOAD/10℃ (NS115 / Standard type)
O-ring seal FKM4-class D (High-accuracy type), NBR(Standard type)
Selectable by the medium.
Class of protection IP67
Material of pressure hole SUS316L (high-accuracy type), SUS304L (Standard type)
Material of cover SUS316 (high-accuracy type), Aluminium (Standard type)
Material of pressure diaphragm Single crystal sapphire
Mounting screw 1/8 ・ 1/4 ・ 3/8G{PF}, {PT}
Weight NS115 : Approx. 200 g, NS115P : 250 g (Main body only)
Tightening torque 20 N・m ~ 40 N・m
Parts No
Parts No. Rated capacity
NS115P-500KP*-***2 500 kPa
NS115P-1MP*-***2 1 MPa
NS115P-2MP*-***2 2 MPa
NS115P-2.5MP*-***2 2.5 MPa
NS115P-5MP*-***2 5 MPa
NS115P-10MP*-***2 10 MPa
NS115-5MP*-***2 5 MPa
NS115-10MP*-***2 10 MPa
NS115-20MP*-***2 20 MPa
NS115-25MP*-***2 25 MPa
NS115-30MP*-***2 30 MPa
NS115-35MP*-***2 35 MPa
NS105-50MP*- ***2 50 MPa
