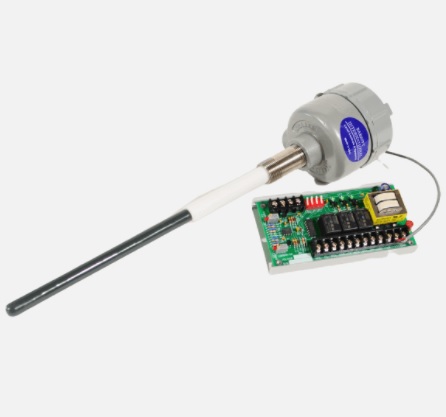

Cảm biến báo mức Babbitt LS8000
ELECTRICAL POWER:
Power: 115VAC (+/- 15%) 50/60Hz, 2 watts STANDARD (12 VDC, 24VDC or 230VAC Optional)
Output: 2 Form C Contact DPDT relay, 5 amp resistive at 125, 230VAC; 30VDC
On Board Fuse: 250mA
Failsafe: Selectable High or Low level
Time Delay: Selectable ON/OFF Delay; Adjustable 1/8 second to 2 Hours
RF Frequency: Approx. 1.3 MHz
ENVIRONMENTAL
Temperature: Teflon insulator -30F to 450F
Pressure: 300 psi @ 75F w/ ¾” NPT (Higher on request)
Hazardous Area: Housing is CSA and UL approved for Class I, Div. 1, Groups C & D; Class II, Groups E, F & G
