| Model name |

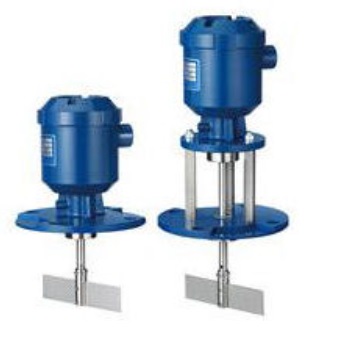

ML-D1 |
| Input power source |
100V, 110V, 200V, 220VAC ±10% 50/60Hz
* A 24V DC model is also available as an option. |
| Power consumption |
When the vane is rotating: 3.5W |
| Contact point capacity |
250VAC 11A , 125VDC 0.6A (resistance load) |
| Contact point type |
1C |
| Vane rotation speed |
Approx. 2 rpm, CCW |
| Detecting torque |
10 to 15 cN•m |
| Ambient operating temperature |
-10 to +50 degrees (temperature in tank: up to 80 degrees) |
| Materials |
Case: Aluminum alloy die cast (ADC12)
Powder contact parts: SUS304
Seal: Nitrile rubber (fluoro rubber for model H) |
| Connection and installation |
Standard flange specification: JIS5K65AF.F or equivalent
Standard flange material: Aluminum |
