| Model name |

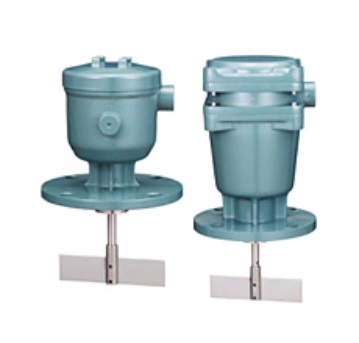

ML-S7/GL-S7 series |
| Input power source |
100V, 110V, 200V, 220VAC ±10% 50/60Hz
* A 24VDC model is also available as an option.(GL-S7 is not supported) |
| Power consumption |
When the vane is rotating: 3.5W |
| Contact point capacity |
250VAC 11A. 125VDC 0.6A (resistance load) |
| Contact point type |
1C |
| Vane rotation speed |
Approx. 2 rpm, CCW |
| Detecting torque |
9 to 13 cN•m |
| Ambient operating temperature |
-10 to +50 degrees (temperature in tank: up to 80 degrees) |
| Materials |
Main housing;
ML Aluminum alloy die cast (ADC12)
GL Casted aluminum foundry alloy (AC4A-F) |
| Powder contacting parts: SUS304 |
| Seal: Nitrile rubber (fluoro rubber for model H) |
| Connection and installation |
Standard flange specification: JIS5K65AF.F or equivalent
Standard flange material: Aluminum |
| Protection level |
IP65 |
| Case color |
Munsell 7.5BG4/1.5 |
