Cảm biến báo mức kiểu rung Matsushima
Level Detection for Fine Powder Material

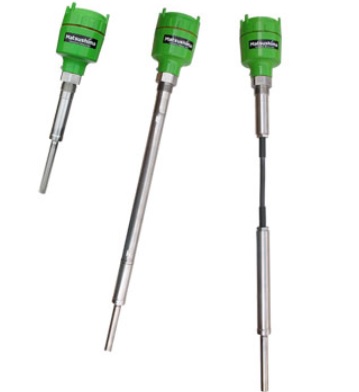

Vibrating Level Switch MVL Series
Product type: Probe (standard), Cable hanging, Pipe
Power Supply: AC/DC22 – 264V 50/60Hz
Power consumption: 4.7W (AC), 1.8W (DC)
Mounting: R1 thread
L-length:
Probe (standard) 225mm
Cable hanging 600mm – 20000mm
Pipe 350mm – 2000mm
Bulk density: ≥ 0.02g/cm3
Output signal: 1C contact output
Vibrating level switch vibrates the probe with a certain frequency by the piezoelectric element, and monitors as constant amplitude voltage with electronic circuit. The amplitude voltage is substantially reduced as the probe is constrained by powder and granular materials. This switch detects this variation in the amplitude voltage and outputs the contact signal. It can be widely applied from fine powder to granular materials including grain as a storage level switch.
