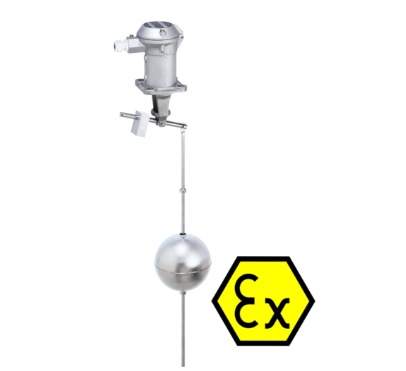

Cảm biến báo mức phòng nổ Trimod Besta B801141 ATEX

Cảm biến báo mức phòng nổ Trimod Besta B801141 ATEX

Cảm biến báo mức phòng nổ Trimod Besta B801141 ATEX

• ATEX Ex ia approval
• 10 ft long rod
• Function – 2-point control (pump) or 1 switching point (alarm)
• Nominal pressure – PN 16 according to EN/DIN
• Operating temperature – 0 to 300°C
• Ambient temperature – 0 to 70°C
• Density of the liquid, Pump control – Min. 0.45 kg/dm³
• Density of the liquid, Alarm – Min. 0.30 kg/dm³
• Operating differential – A 01 140: 12 to 1340 mm
• Westside material – Stainless steel (CrNiMo)
• Housing material – Seawater resistant die cast aluminium
• Flange dimensions – Square 92 x 92 mm PCD
• Switch element – Microswitch SPDT with gold contacts
• Switch rating – 250 VAC, 5 A / 30 VDC, 5 A
