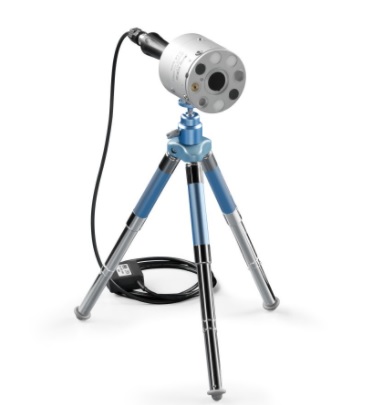

Cảm biến đo bức xạ mặt trời Delta OHM HD2402
HD2402 is a portable photo-radiometer data logger for the measurement of noncoherent optical radiation in accordance with European Directive 2006/25/EC and the Legislative Decree No 81, April 9, 2008.
The instrument consists of a series of sensors to cover different portions of the spectrum and a small laser which is used to indicate the analyzed source.
- Photometric sensor for measuring the illuminance (lux meter) in the spectralrange 380÷780 nm
- Radiometric sensor for the UV band (220÷400 nm) with spectral weighing factor S(λ)
- Radiometric sensor for UVA band (315÷400 nm)
- Radiometric sensor for the band 400÷700 nm (blue) with spectral weighing factor B (λ)
- Radiometric sensor for the IR band (700÷1300 nm) with spectral weighing factor R(λ)
- Thermopile sensor for the measurement of irradiance in the infrared spectral range 400÷2800 nm
