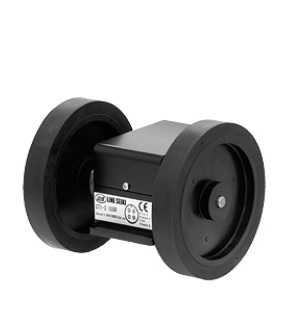

Cảm biến đo chiều dài Line Seiki CT1-3:1, CT1-3:10, CT1-3:100A, CT1-3:1000A, CT1-3:1R, CT1-3:10R, CT1-3:100R, CT1-3:1000R

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Cảm biến đo chiều dài Line Seiki CT1-3:1, CT1-3:10, CT1-3:100A, CT1-3:1000A, CT1-3:1R, CT1-3:10R, CT1-3:100R, CT1-3:1000R

Thông tin sản phẩm

Cảm biến đo chiều dài Line Seiki CT1-3:1, CT1-3:10, CT1-3:100A, CT1-3:1000A, CT1-3:1R, CT1-3:10R, CT1-3:100R, CT1-3:1000R


Model Sensor Unit Speed Weight Rotation Torque Proper Counter
CT1-3:1 Microswitch 1m 240meter/minute 700g 15mN.m Electronic Counter
Electromagnetic Counter
CT1-3:10 10cm 24meter/minute 710g
CT1-3:1A

Photoelectronic Sensor,
1non-contact output
(Voltage Output)

1m 700meter/minute 730g Electronic Counter
CT1-3:10A 10cm 500meter/minute 730g
CT1-3:100A 1cm 250meter/minute 740g
CT1-3:1000A 1mm 100meter/minute 790g
CT1-3:1R Photoelectronic Sensor,
2non-contact outputs
 (Voltage Output /
90°Quadrature Output)
1m 700meter/minute 740g Bidirectional
Electronic Counter
CT1-3:10R 10cm 500meter/minute 740g
CT1-3:100R 1cm 250meter/minute 750g
CT1-3:1000R 1mm 100meter/minute 780g
*Factory-installed option: Open collector output is available in 1 and 2 non-contact outputs models.
  "C" should be added to the model number.(Ex.)CT1-3:10AC
Model Output Power source Current consumption Output impedance Maximum load current
CT1-3:1, CT1-3:10 1 Output Microswitch Contact output,
Capacity : AC250V・5A, DC125V 0.5A (Load)
CT1-3:1A, CT1-3:10A, CT1-3:100A 1 Output DC5 - 24V ±10% 35mA 3.9KΩ 100mA
CT1-3:1000A

1 Output DC5 - 12V ±10% 20mA 2KΩ 20mA
CT1-3:1R, CT1-3:10R, CT1-3:100R 2Outputs
(90°Quadrature)
DC5 - 24V ±10% 70mA 3.9KΩ 100mA
CT1-3:1000R
2 Outputs
(90°Quadrature)
DC5 - 12V ±10% 40mA 2KΩ 20mA
