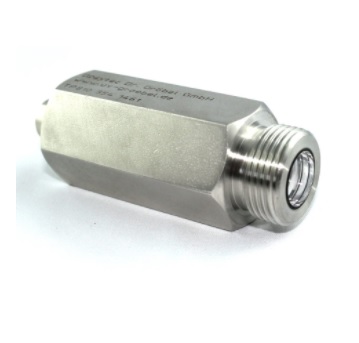

Cảm biến đo cường độ tia cực tím UV Opsytec UV SENSOR UVX-SE
Measuring range 0 - 200 mW/cm²
Measuring range option 0 - 20 mW/cm²
Connector G 3/4“
Dimensions see drawing
Housing material stainless steel
Weight ~420 g
Water pressure up to 10 bar
Operating voltage 24 V
Operating current <15 mA
Output 0 - 10 V or 4 - 20 mA
Operating temperature 0 to 60 °C
Storage temperature -10 to 60 °C
Humidity < 80%, non-condensing
Cable 2 m – 10 m
Sensor connector M12 (5-pole)
