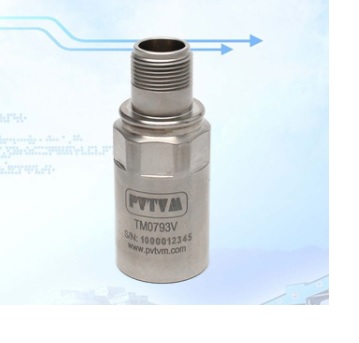

Cảm biến đo độ rung PVTVM TM0793V Velocity Transducer
The TM0793V-K velocity transducer kit consists of one velocity transducer and one 5 meter cable. This velocity transducer kit directly interfaces with PVTVM’s signal conditioners: DTM, TR transmitters, DM dual monitors and PT580 vibration switches to measure case vibration in velocity or displacement.
Electrical
Sensitivity: 4.0mV/mm/sec (100mV/in/sec),
@ 25oC, ±10%
Velocity Range: 5.0V pk
Amplitude Nonlinearity: 1%
Frequency Response: 2 - 7,000Hz (±3dB)
Isolation: Fully isolated
Transverse Sensitivity: < 5% or axial
Power Requirement:
3 - 10mA constant current
18 - 30VDC
Resonance Frequency: 15 kHz
Bias Voltage: 10 - 14VDC
Maximum Transmission Distance:
300 meters (1,000 feet)
