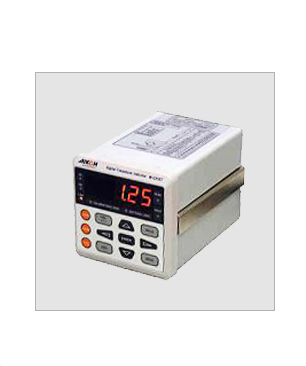

- Digital display meter conforming to the International Standard (IEEE) TEDS standard.
- You can easily perform load calibration by using the TEDS function of the load cell where data is written to the memory.
Thông số kỹ thuật
| Model |
Model CB Series |
| Rated capacity |
50N - 10kN |
| Rated output |
2mV/V±1％ |
| Nonlinearity |
0.05% RO |
| Hysteresis |
0.05% RO |
| Repeatability |
0.05% RO |
| Recommended applied voltage |
10V |
| Allowable applied voltage |
15V |
| Input/output resistance |
350Ω ± 2% |
| Insulation resistance |
2000 MΩ or over |
| Temperature compensation range |
-10 ~ + 70 ° C |
| Allowable temperature range |
-20 ~ + 80 ° C |
| Zero point influence by temperature |
± 0.01% RO / ° C |
| Output influence by temperature |
± 0.01% RO / ° C |
| Allowable overload |
150% RC |
| Cable length |
3m |
| Tip shape |
And terminal |
