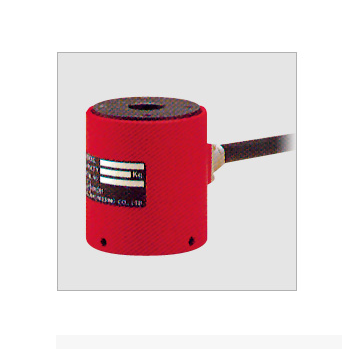

Easy installation on pressing machines and jigs and low height to make this model most suitable for controlling press-fitting and caulking load.
Widely used for press-fitting and caulking.
Thông số kỹ thuật
| Model |
Model CH Series |
| Rated capacity |
5kN - 500kN |
| Rated output |
1mV/V±1％ |
| Nonlinearity |
0.5%R.O. |
| Hysteresis |
0.5%R.O. |
| Repeatability |
0.1%R.O. |
| Recommended applied voltage |
10V |
| Allowable applied voltage |
15V |
| Input/output resistance |
700Ω±2％（5kN : 350Ω±2％） |
| Insulation resistance |
2000 MΩ or over |
| Temperature compensation range |
-10 ~ +70°C |
| Allowable temperature range |
-20 ~ +80°C |
| Zero point influence by temperature |
±0.01%R.O./°C |
| Output influence by temperature |
±0.01%R.O./°C |
| Allowable overload |
150%R.C. |
| Cable length |
3m |
| Tip shape |
Y terminal |
