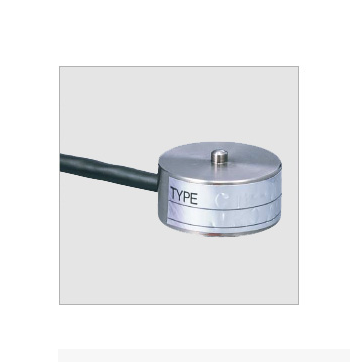

- A low-priced, very small-sized load cell dedicated to compression test.
- Most suitable for measurement in a limited space.
Thông số kỹ thuật
| Model |
Model CM Series |
| Rated capacity |
10N - 2kN |
| Rated output |
Approx. 1 mV/V |
| Nonlinearity |
1%R.O. |
| Hysteresis |
1%R.O. |
| Repeatability |
0.3%R.O. |
| Recommended applied voltage |
6V |
| Allowable applied voltage |
10V |
| Input/output resistance |
350Ω±2% |
| Insulation resistance |
1000 MΩ or over |
| Temperature compensation range |
-10 ~ +70°C |
| Allowable temperature range |
-20 ~ +80°C |
| Zero point influence by temperature |
±0.05%R.O./°C |
| Output influence by temperature |
±0.05%R.O./°C |
| Allowable overload |
150%R.C. |
