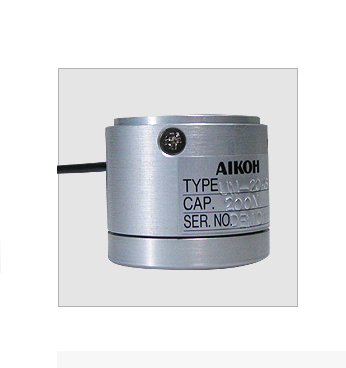

- A smaller type of M-3000 Series.
- A highly precise load cell in wide use for tensile and compression tests.
- Little output difference in tension and compression and stable performance
A load cell used in Aikoh’s force testers
Thông số kỹ thuật
| Model |
Model UM Series |
| Rated capacity |
20N - 200N |
| Rated output |
2mV/V±1％（20N : 1mV/V） |
| Nonlinearity |
0.1%R.O. |
| Hysteresis |
0.1%R.O. |
| Repeatability |
0.1%R.O. |
| Recommended applied voltage |
10V |
| Allowable applied voltage |
15V |
| Input/output resistance |
350Ω±2% |
| Insulation resistance |
1000 MΩ or over |
| Temperature compensation range |
-10 ~ +70°C |
| Allowable temperature range |
-20 ~ +80°C |
| Zero point influence by temperature |
±0.01%R.O./°C |
