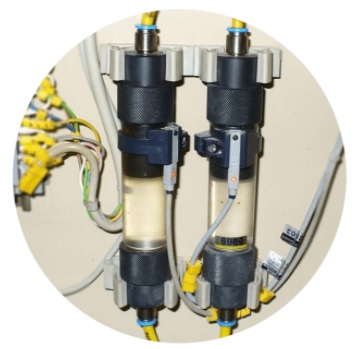

Cảm biến đo lưu lượng hãng STS Electronics
The sensors are designed to control minimum flow rates in systems using technical clean water for cooling, up to 2atm (200kPa) and water temperature up to 50oC. The fluid flowing through the body of the sensor moves the float in the upper position, triggering a magnetic sensor. The design of the sensor allows convenient installation on different sizes of piping using standard fittings.
TECHNICAL PARAMETERS :
Type: DD 02 / F8 DD 02 / M8 DD 02 / G3 / 8
Flow rate: 1.5L / min +/- 10%
Maximum flow rate: 10L / min
Housing material: PVC, PET
Operating temperature: 50ºC
Connection: F8 connection Thread M 8×1 thread G 3/8 “The sensors are fitted with a” Mounting bracket “for mounting on a panel.
and a MD01 magnetic sensor.
RECOMMENDATIONS FOR INSTALLATION AND OPERATION
The sensor shall be mounted in a vertical position with a maximum deviation of 5º. The correct direction of the fluid is indicated by the arrows on the sticker. Mounting excludes the application of mechanical effort to the body of the sensor
