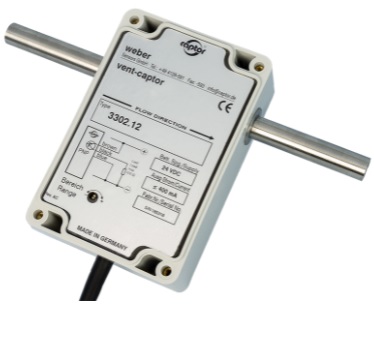

Cảm biến đo lưu lượng khí Weber vent-captor 3302.1x/xx
Inline flow-switch for monitoring air and other gaseous media
especially suited to small bore application, virtually non invasive, minimal flow constriction, small footprint
Output: switched transistor, fully adjustable switch point
Operating principle: calorimetric (thermal mass)
Measuring range: 0.5 to 20 m/s (switch point adjustment)
Options: factory calibration, enclosures
Pipe options (OD): 8 - 28 mm diameter, stainless steel
Supply voltage: 18 - 30 VDC, other options on request
