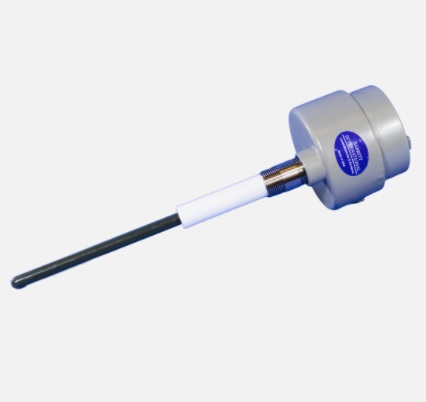

Cảm biến đo mức Babbitt LT9000
ELECTRICAL
Power: 115VAC (+/- 15%) 50/60Hz or 24VDC
Output: 4-20mA into a load of 1K ohm max.
On Board Fuse: .5A @ 125 volts
Frequency: 10,000Hz to 300,000Hz
ENVIRONMENTAL
Temperature: Probe: -30F to 340F - HALAR
-30F to 250F – TEFLON SLEEVE
Pressure: 1500 psi @ 75F – 1” NPT STANDARD
300 psi @ 75 F – ¾” NPT (Optional)
Hazardous Area: Housing is CSA and UL approved for Class I, Div. 1, Groups C & D; Class II, Groups E, F & G
