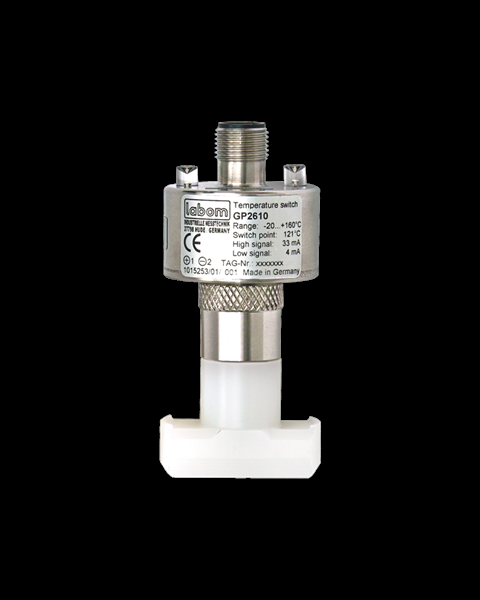

- Electrical 2-wire temperature switch for connecting to a digital PLC I/O
- Various clamping elements for process connection:
- clamping block (for pipe-Ø 4...17.2 mm)
- clamping shoe (for pipe-Ø 10...300 mm)
- clamping bracket (for pipe-Ø 4...17.2 mm)
- Hygienic temperature measurement for pipe diameters of 4…300 mm
- Measuring system patented
- High accuracy, fast response
- Easy installation
- No welding, no process interruption
- No additional isolation required
- Measuring insert can be recalibrated
- Temperature switch with output signal 4 or 33 mA, 2-wire technology, switching functionality (max. makers):
OFF = 4 mA
ON = 33 mA
- Switch point setting by using a magnet; range from -40 to +150 °C
- Switching point accuracy ± 0,5 K
- Switching delay: 0 sec
- Hysteresis 0.1 K
- Switch state indicator with 2 LEDs (green light)
- Electrical connection M12
