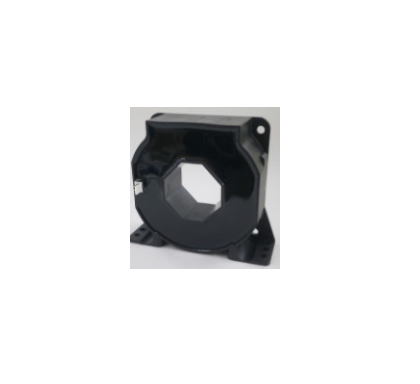

| Rated Primary Current |
DC/AC1000A |
| Rated Secondary Current |
250mA |
| Applicable Current |
0～±1800A |
| Max. Capable Current |
±1800A |
| Nominal CT Ratio |
1:4000 |
| CT Inside Diameter |
40.5×38.5mm |
| Applicable Frequency |
0～150kHz |
| Accuracy |
±0.6% F.S |
| Response Time |
Approx. 1μs |
| Power Supply |
±15V～±24V ±5% （Bipolar） |
| Power Consumption |
Approx. 400mA |
| Output Part |
Molex Mini Fit Jr5566 |
| Wiring Method |
+:+15～+24V M:Output -:-15～-24V |
| Rated Voltage |
Less than DC/AC500V for low voltage circuit of coated wires |
| Withstanding Voltage |
AC3500V/1 minute (between output terminal and CT) |
| Insulation Resistance |
More than 100MΩ by 500V insulation tester (between output terminal and CT) |
| Operation Temperature |
-25℃～+70℃, less than 75%RH w/o condensation |
| Dimension |
90×95×34mm |
| Weight |
Approx. 520g |
| Standard |
Compliant with RoHS directive
|
